Overview of Boxster running gear: Brakes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Hydraulic dual-circuit brake system with front-axle / rear-axle brake-circuit distribution. Vacuum brake booster, internally ventilated brake disks with four-piston fixed caliper at front and rear axles.

ABS 5.3 (3-port system) standard. ABS/TC 5.3 (4-port system) on special request. TC = Traction Control, consisting of ASR (antislip control) und ABD (Automatic Brake differential).

Parking brake (handbrake): Drum brake acting mechanically on both rear wheels.

See Fig 2 .

Front axle / steering

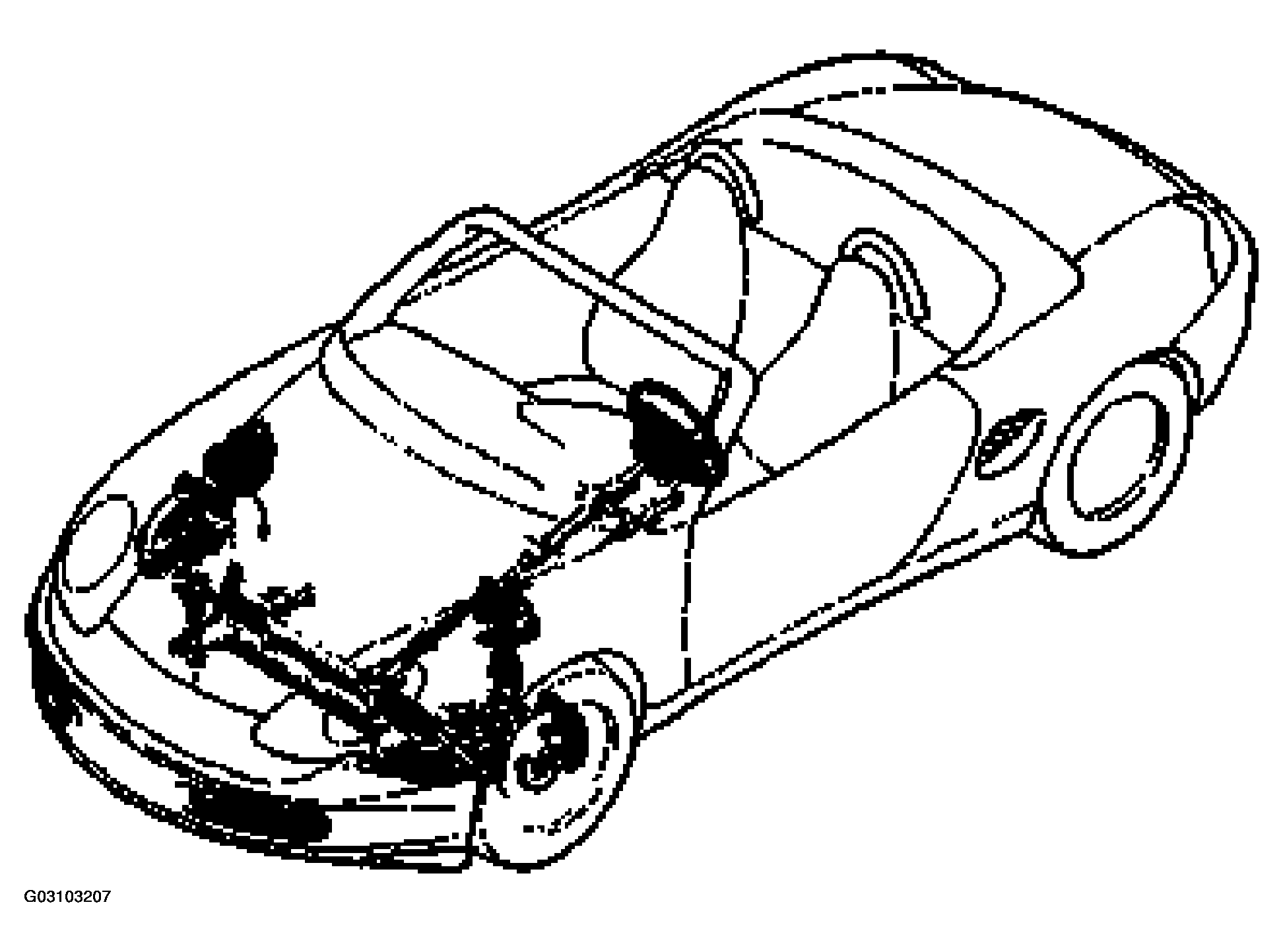

Fig 1: Identifying Front Axle / Steering Layout

Courtesy of PORSCHE OF NORTH AMERICA, INC.

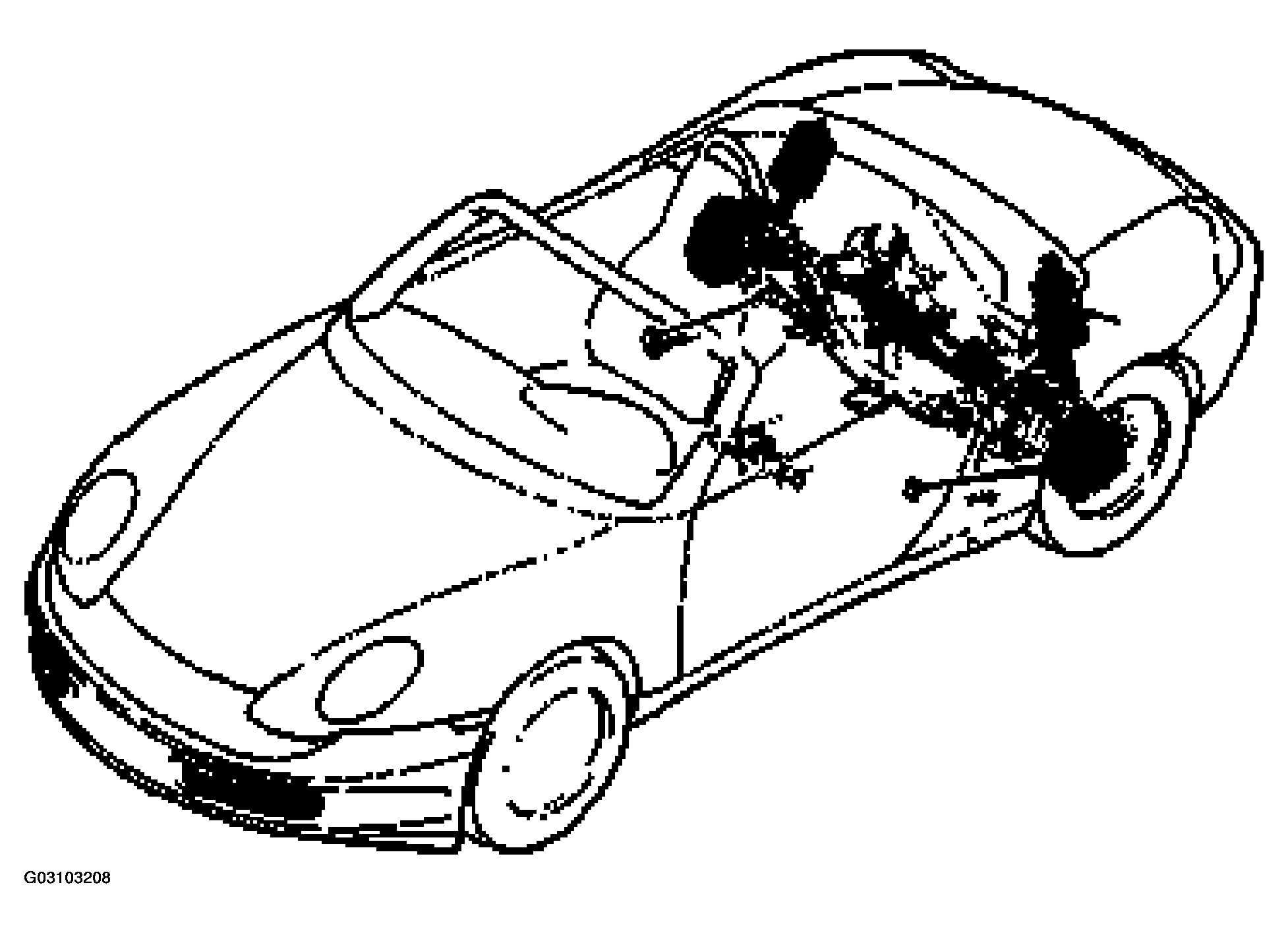

Fig 2: Identifying Braking System Layout (Rear)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

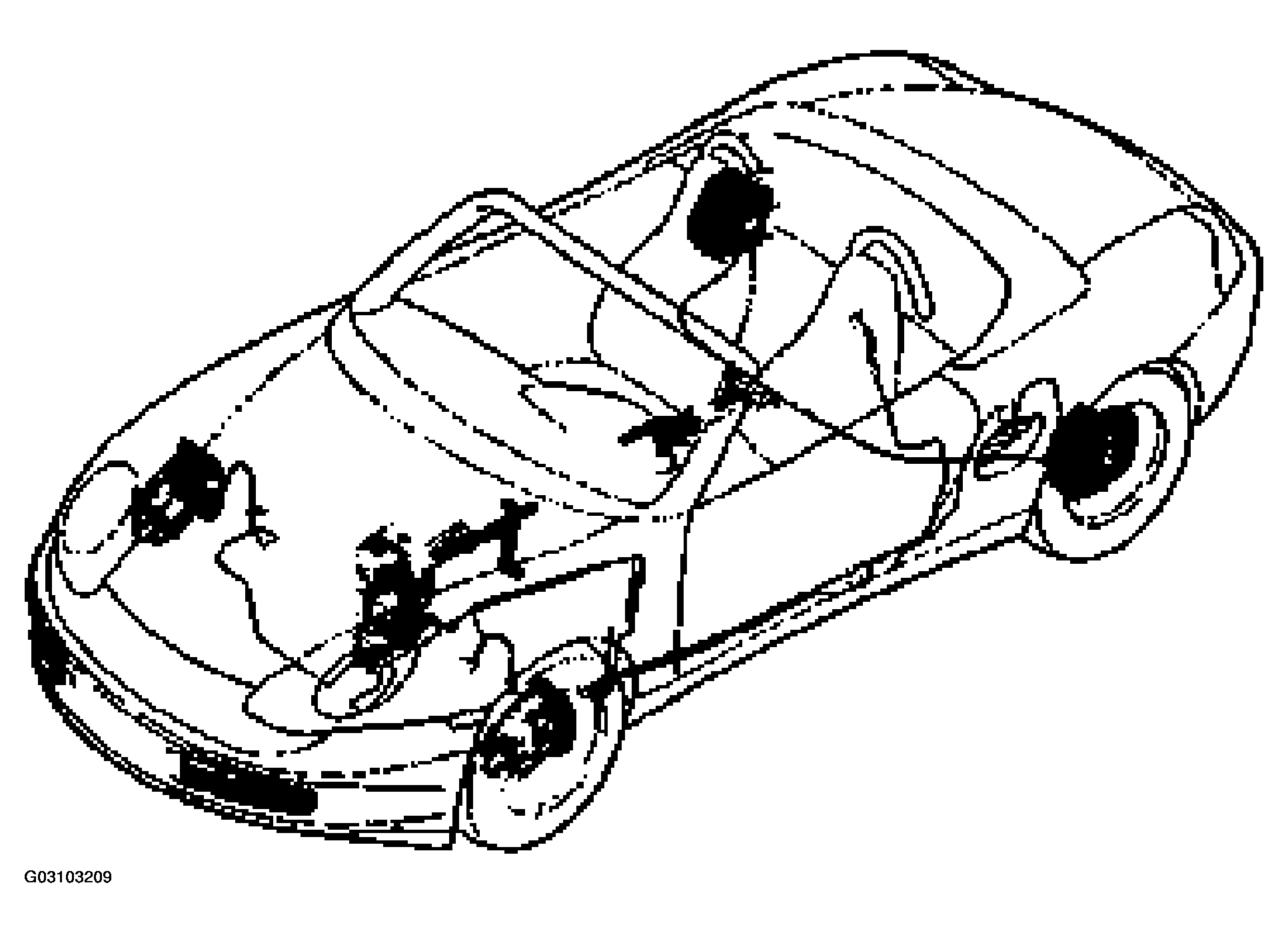

Fig 3: Identifying Braking System Layout (Front)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
