Driver-side AIR Bag

WARNING: This page is about a different car, the 2004 Porsche Boxster and 2004 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure air bag unit is securely mounted. Disconnect battery cables. Disconnect contact ring connector and connect Ignition Device (9257) with Ignition Cable (9267) to contact ring connector. See Fig 1 . Close doors with windows down. Connect ignition device to 12-volt battery at least 33 feet (10 m) in front of vehicle.
  2. Depress deployment switch on ignition device to deploy air bag. Because of heat, DO NOT touch air bag for about 30 minutes. If air bag does not deploy, air bag unit must be returned to manufacturer in Porsche-approved packaging.

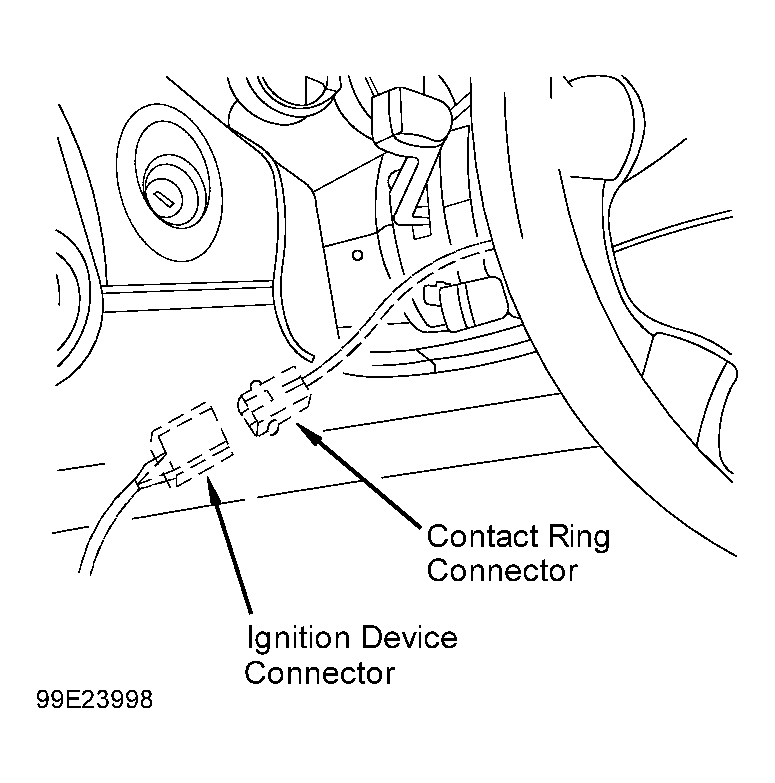

Fig 1: Identifying Contact Ring Connector
G99E23998Courtesy of PORSCHE OF NORTH AMERICA, INC.
