Design of the Tester

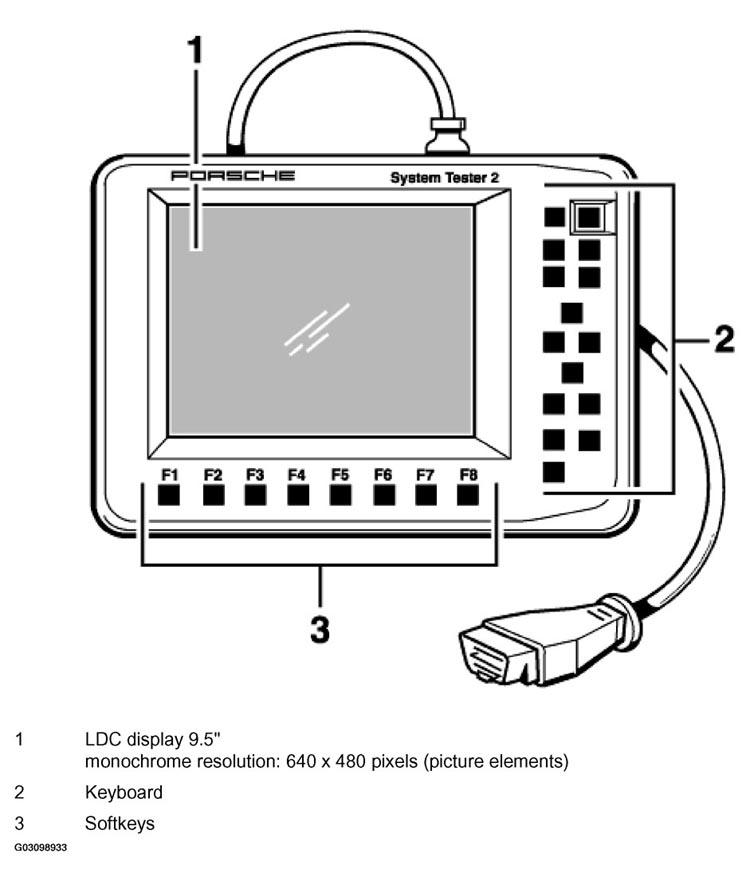

Fig 1: Identifying Design Of Tester

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Softkeys can have different functions. The functions are displayed at the bottom edge of the screen.

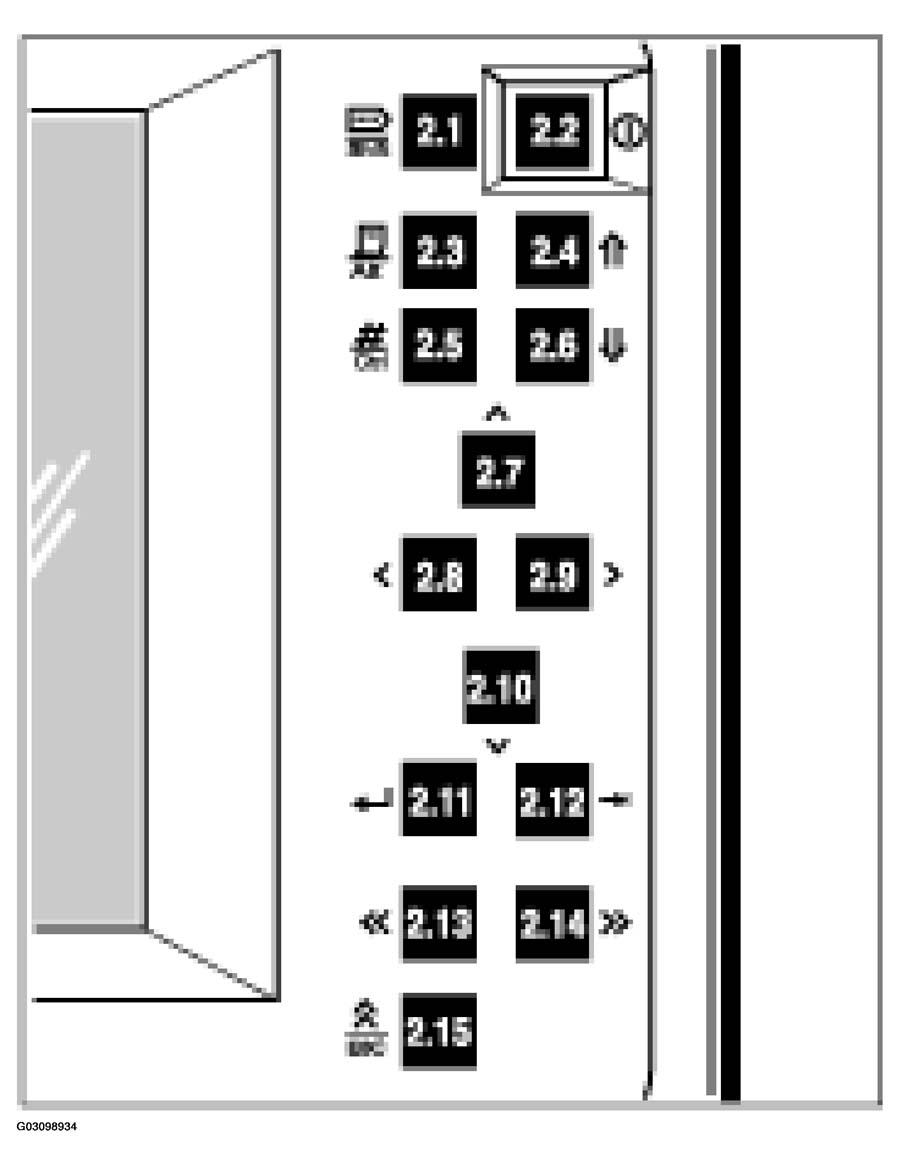

Fig 2: Identifying Softkeys

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. 2.1 Tabulator key, used to change to the selection menu for control module-specific functions
2. 2.2 ON/OFF switch
3. 2.3 Print key to print out data, measured values, screen display (hardcopy), working log
4. 2.4 This key is used to jump to the beginning
5. 2.5 Used in combination with key 2.4 or 2.6 to control the brightness
6. 2.6 This key is used to jump to the end
7. 2.7 Used to move the cursor up
8. 2.8 Used to move the cursor to the left
9. 2.9 Used to move the cursor to the right and to select drive links, input signals and actual values
10. 2.10 Used to move the cursor down
11. 2.11 Enter key
12. 2.12 Used to change the active screen part
13. 2.13 Return key
14. 2.14 Continue key
15. 2.15 Escape key
