Diagnosis Card

The Diagnosis Card is the interface between the Porsche System Tester II 9588 and the vehicle. The Diagnosis Card is responsible for diagnostic reports, control-module programming voltage and for voltage supply to the Porsche System Tester II 9588 via the vehicle battery. The Diagnosis Card can be left in the Tester.

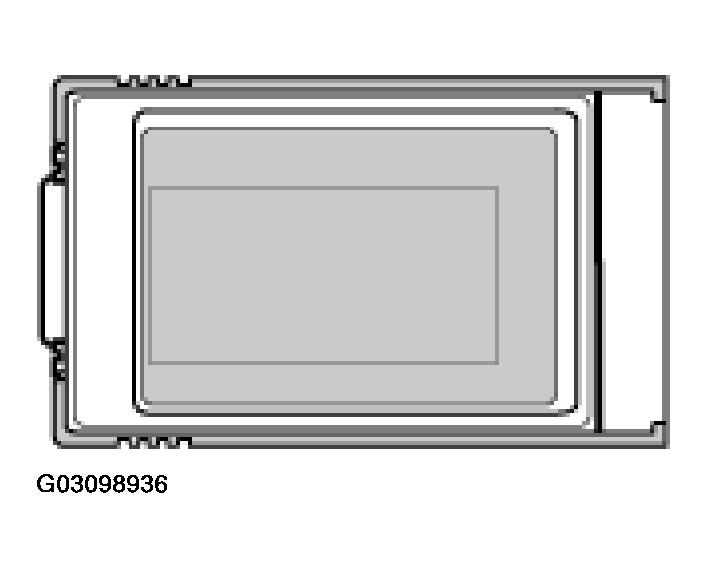

Fig 1: Identifying Diagnostic Card
G03098936Courtesy of PORSCHE OF NORTH AMERICA, INC.
