Installing optical contacts on connector side

  1. Insert the optical contact -B-  in the connector until it engages audibly.

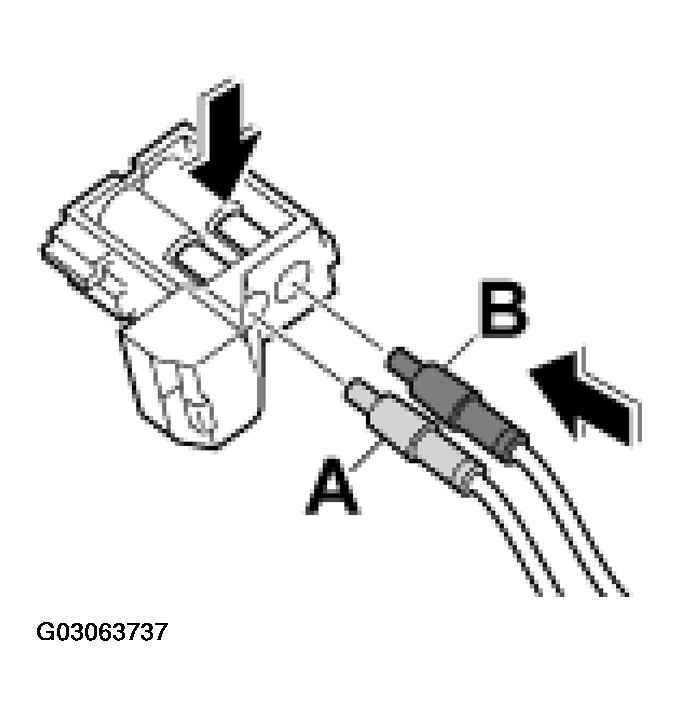

    Fig 1: Installing Optical Contact On Connector Side
    G03063737Courtesy of PORSCHE OF NORTH AMERICA, INC.
    • -A-  Optical contact, grey. See Fig 1 .
    • -B-  Optical contact, black. See Fig 1 .
  2. Lock the secondary locking -arrow-  and check the optical contacts for tightness.

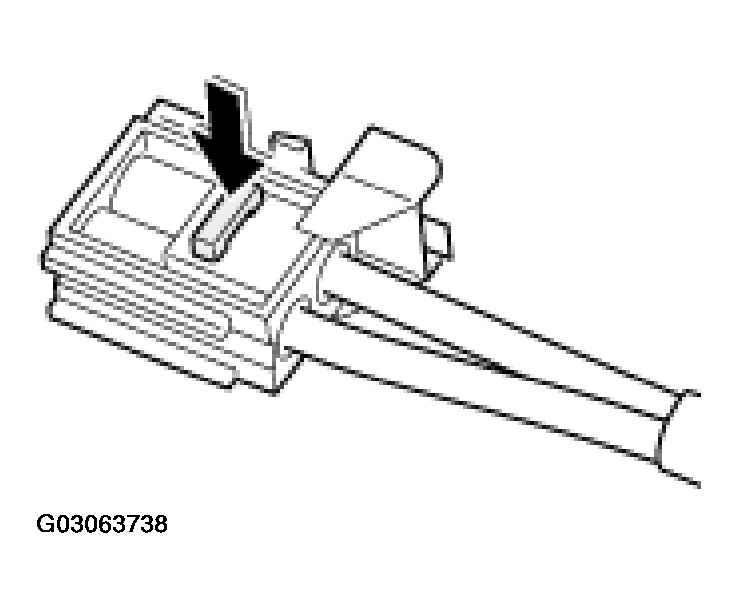

    Fig 2: Locking Secondary Locking
    G03063738Courtesy of PORSCHE OF NORTH AMERICA, INC.
