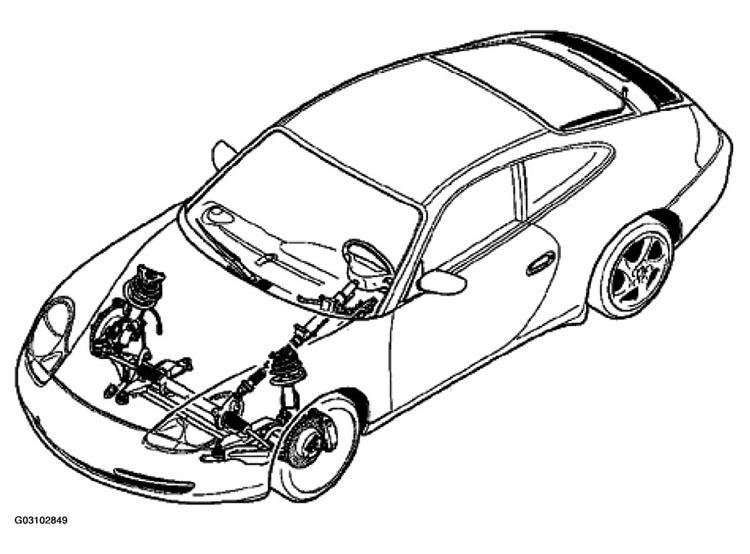

Front axle / steering
McPherson wheel suspension with offset spring.
Twin-tube gas-filled shock absorbers in standard or sports version.
In order to obtain greater stiffness with reduced intrinsic weight as compared with steel, the following components have been made from aluminum: Control arm, diagonal brace, track rod, wheel carrier and cross member / side member.
Rack-and-pinion gear (i = 16.9 : 1) with hydraulic assistance.
Steering wheel longitudinally adjustable (40 mm).
Further improvement of steering precision and reduction in the turning circle (10.6 m) as compared with the previous 911 Carrera (993).
