Overview - plastic body components

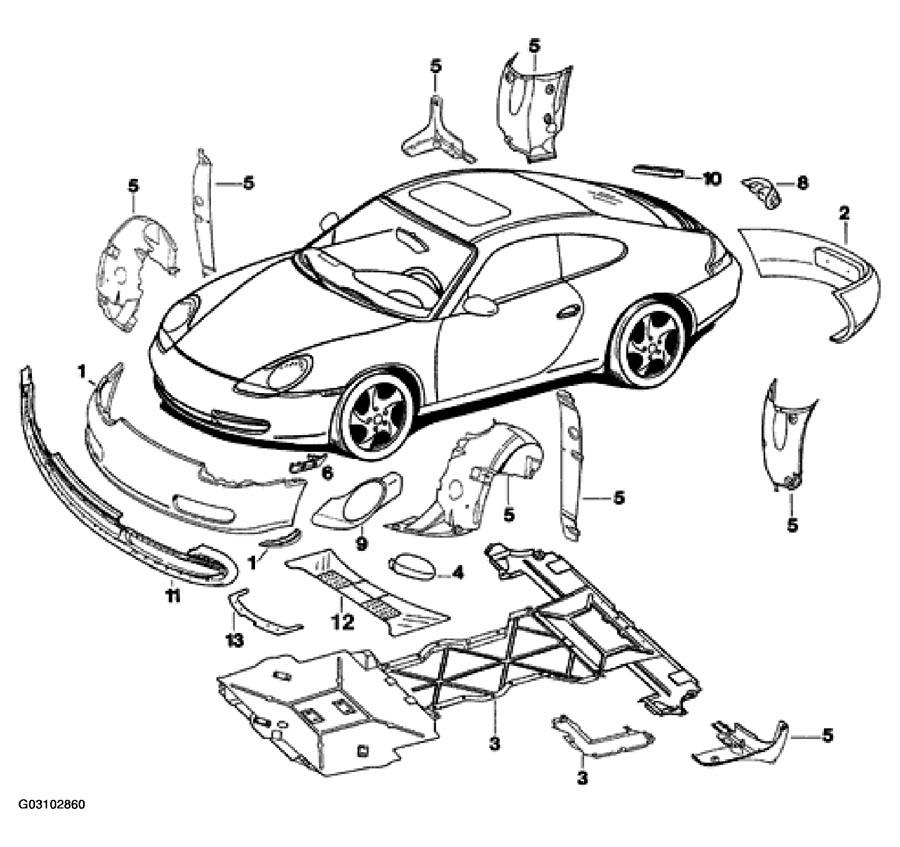

Plastic body components
PLASTIC BODY PANEL SPECIFICATIONS
| No. | Component | Plastic |
|---|---|---|
| 1 | Front end | PP+EPDM |
| 2 | Rear end | PP+EPDM |
| 3 | Underside panel | PP |
| 4 | Housing for rear-view mirror | PC+ABS |
| 5 | Wheel housing liners | PP |
| 6 | Front direction indicator light | |
| Direction indicator light housing | ABS | |
| Direction indicator light lens | PMMA | |
| 7 | Rear spoiler | PA |
| 8 | Rear direction indicator light | |
| Direction indicator light housing | ABS | |
| Direction indicator light lens | PMMA | |
| 9 | Headlight | |
| Headlight housing | PP | |
| Headlight lens | PC | |
| 10 | Third brake light | PMMA |
| 11 | Front air inlet grille | PP+EPDM |
| 12 | Front radiator tank cover | PP |
| 13 | Front luggage compartment cover | PP |
