General Information - 911 CARRERA (996)
>>
Body
>>
Component arrangement - airbag
Component arrangement - airbag

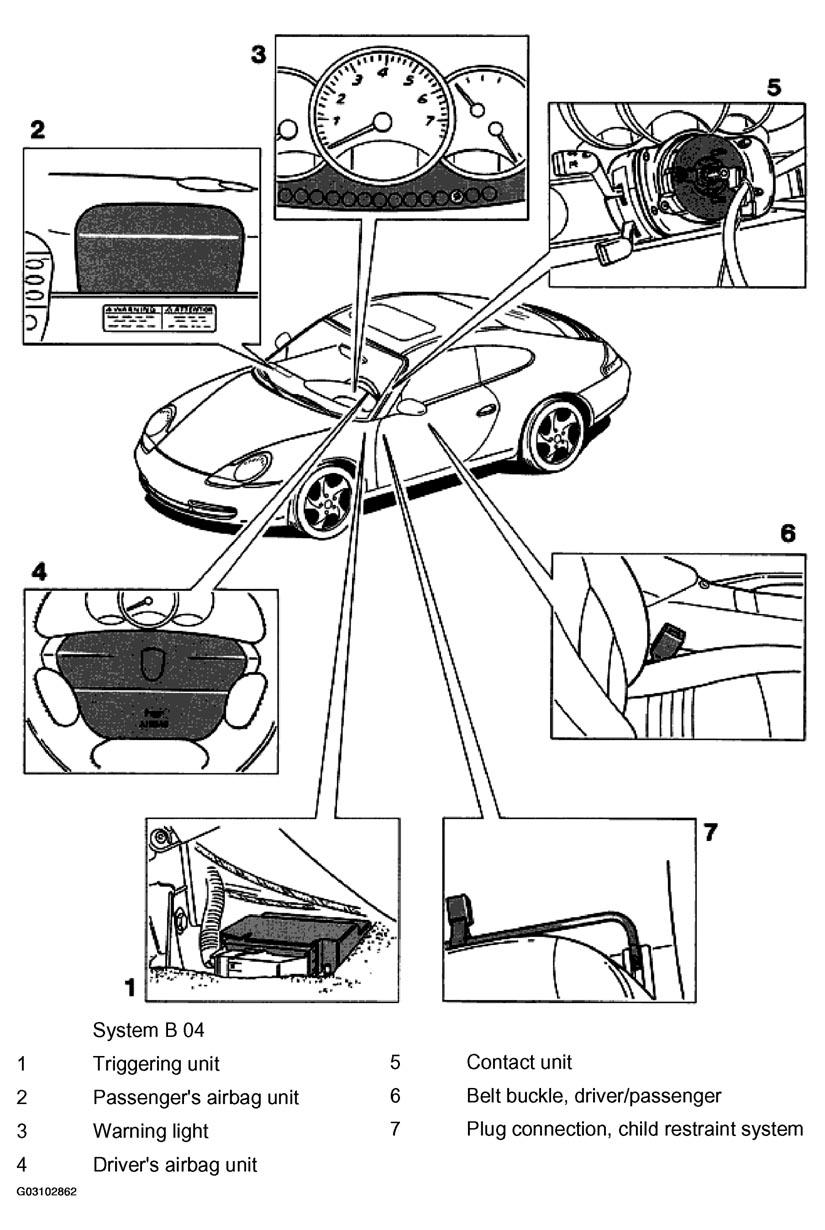

Fig 1: Identifying Component Arrangement Of Airbag System
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
