Relay Support 1

Relay support block 1 is located in driver's footwell, next to fuses support block. For relay support 1 layout, and distributor bridge plug positions, see Fig 1, Fig 2and Fig 3 .

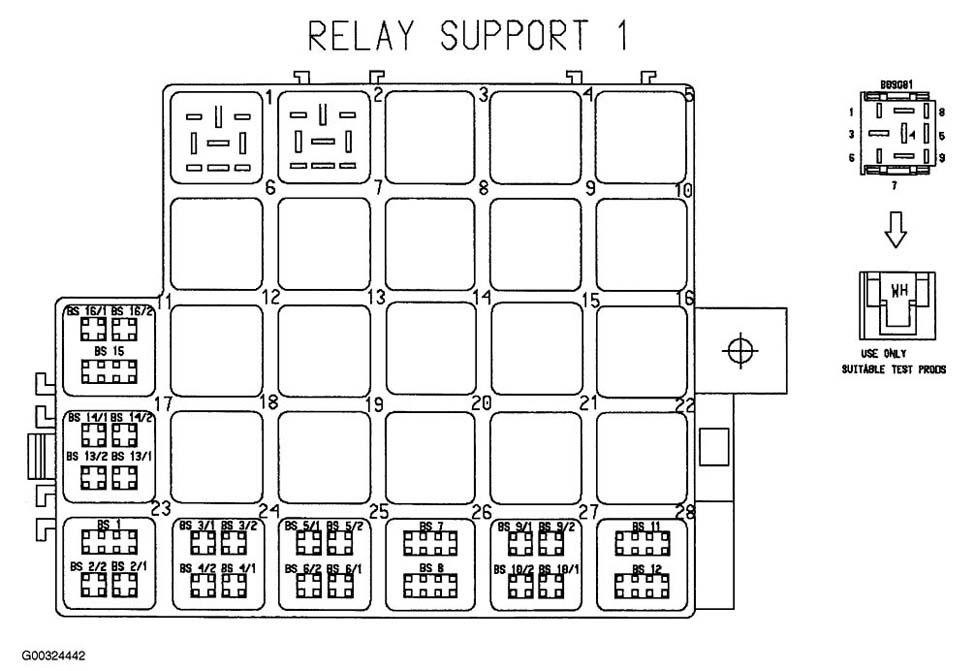

Fig 1: Identifying Relay Support 1

Courtesy of PORSCHE OF NORTH AMERICA, INC.

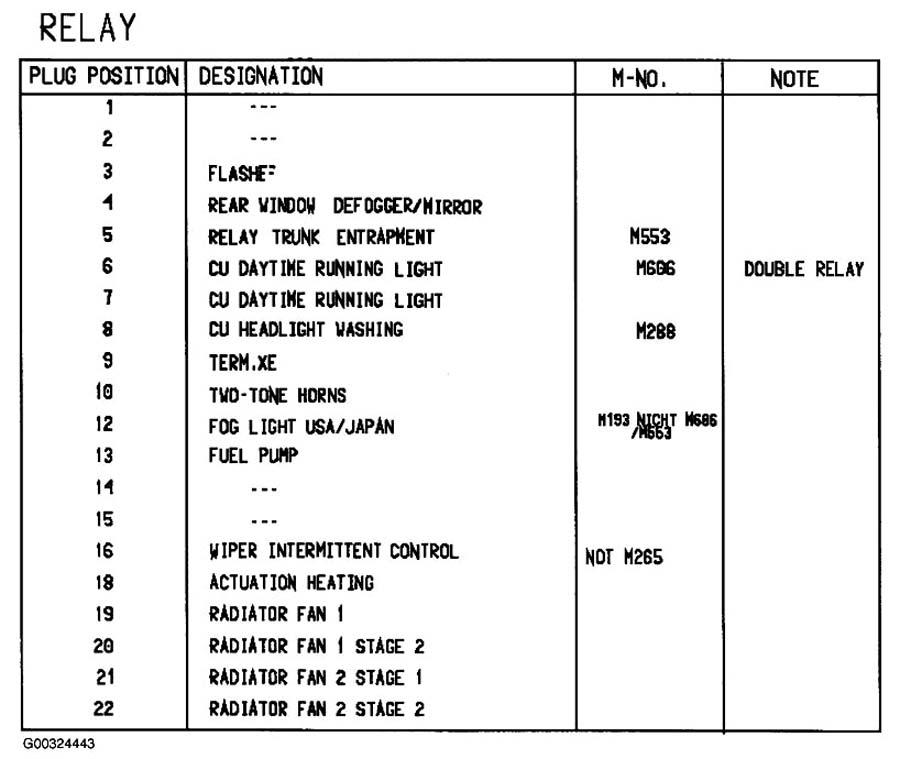

Fig 2: Identifying Relay Support 1 Relays

Courtesy of PORSCHE OF NORTH AMERICA, INC.

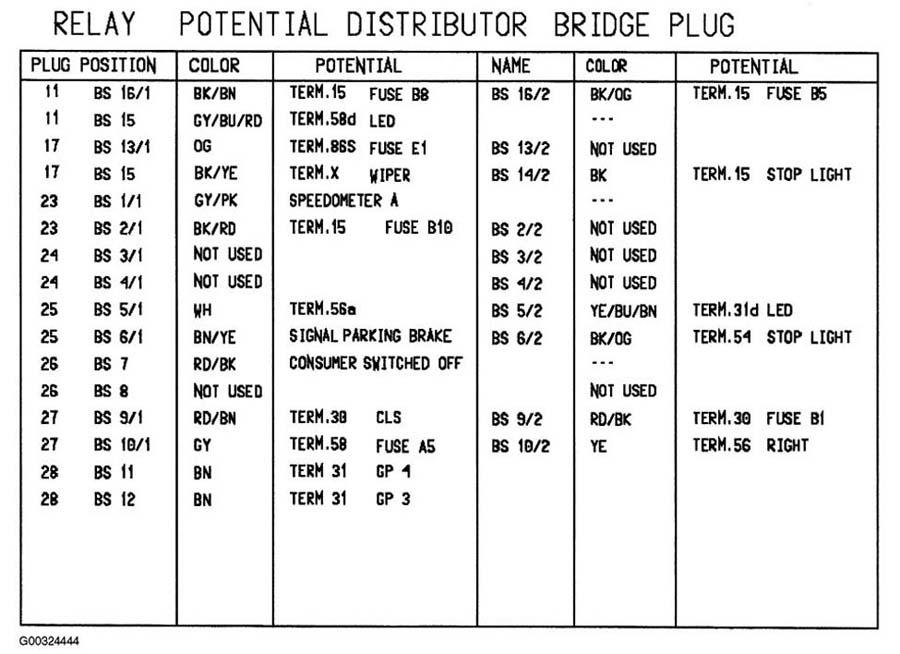

Fig 3: Identifying Relay Support 1 Potential Distributor Bridge Plug Positions

Courtesy of PORSCHE OF NORTH AMERICA, INC.
