Component Locations

FUSES & RELAY BLOCK LOCATIONS

Component Location
Current Distributor (1)
Fuses Support Block Behind Cover In Driver's Footwell Kick Panel
Relay Support 1 (2) Next To Fuses Support Block
Relay Support 2 (2) Back Wall Of Engine Compartment On Left Side
(1) See Fig 1.
(2) See Fig 2.
Fig 1: Locating Current Distributor
G00186977Courtesy of PORSCHE OF NORTH AMERICA, INC.

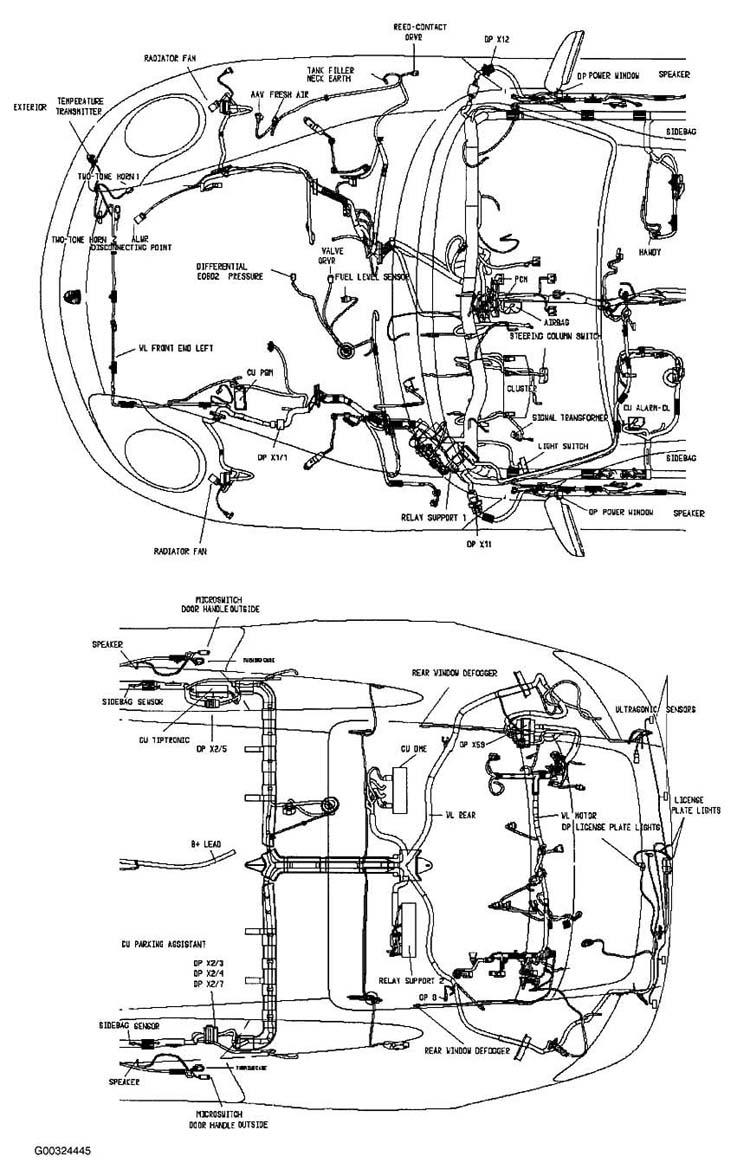

Fig 2: Locating Relay Support 1 & 2
G00324445Courtesy of PORSCHE OF NORTH AMERICA, INC.
