Repair of main wiring harness: Notes

NOTE:

The combination wires for ABS and BVA are integrated in the wiring harness. In the event of damage, the integrated wires can be disconnected and replaced by repair wires. The disconnection points are located at the front left and front right above the radiator tank. After repair, the following function tests must be performed:
ABS: Test with the Porsche System Tester 2.
BVA: The indicator light must go out with the engine running and the brake linings intact.
Disconnection point, front left: Join wires between the -arrows- with crimp connectors.

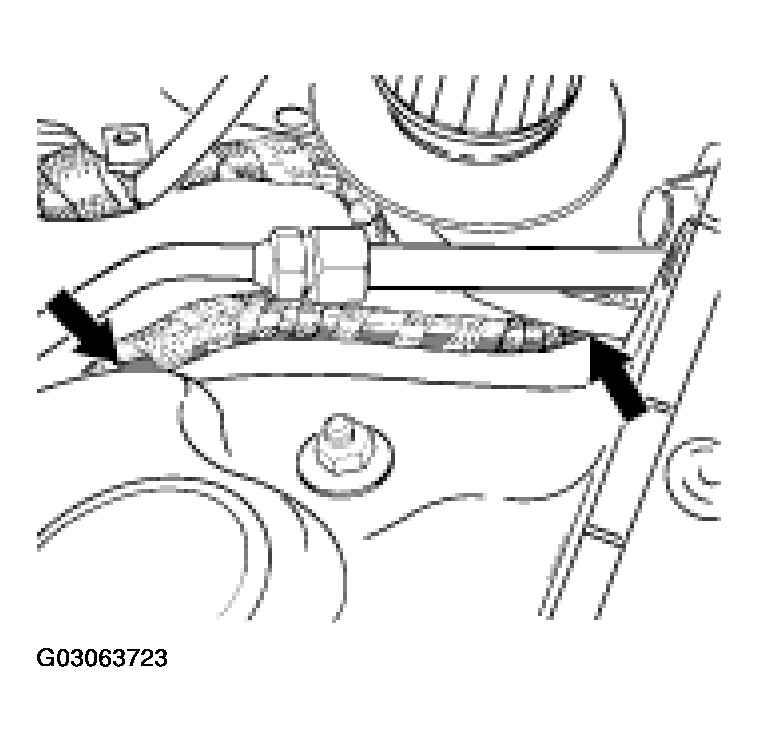

Fig 1: Identifying Disconnection Point Front Left
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disconnection point, front right: Join wires between the -arrows- with crimp connectors.

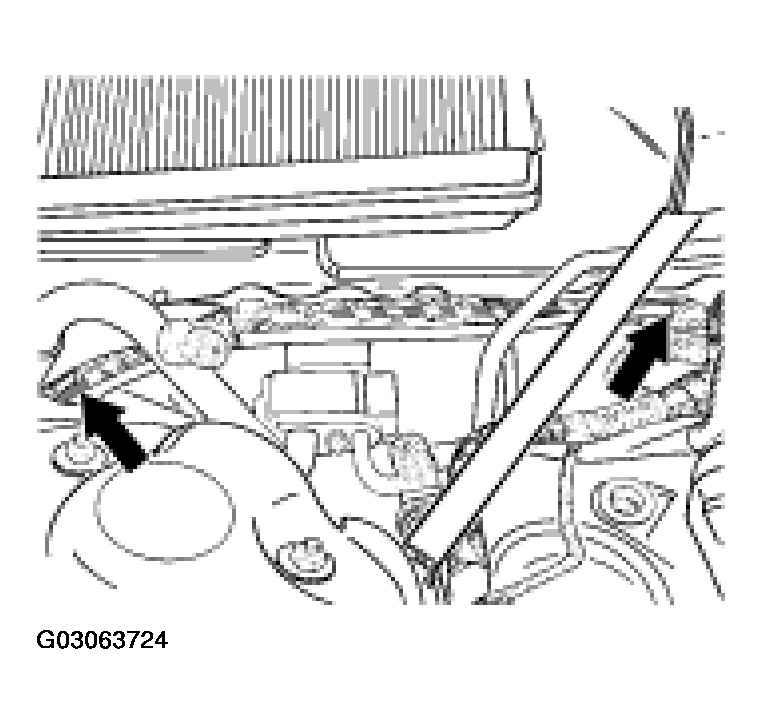

Fig 2: Identifying Disconnection Point Front Right
Courtesy of PORSCHE OF NORTH AMERICA, INC.
