Removing current distributor

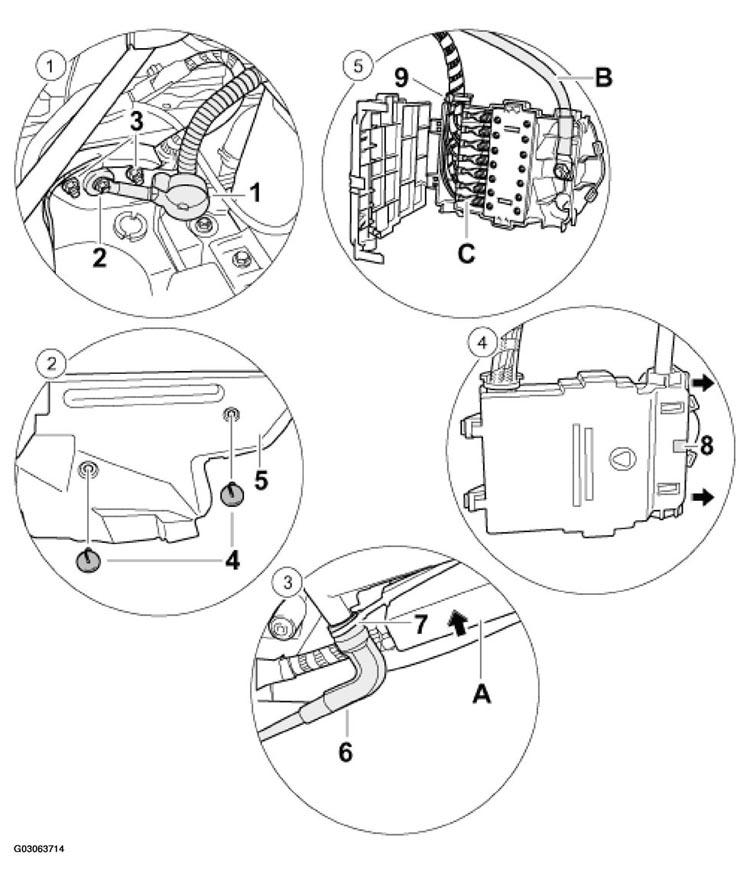

Fig 1: Removing Current Distributor Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CURRENT DISTRIBUTOR REMOVAL PROCEDURE

No.	Procedure	Instructions
	Disconnecting battery	Remove the battery cover and the cover of the right radiator tank. Refer to REMOVING AND INSTALLING COWL PANEL COVER . Refer to WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
1	Fastening current distributor	Pull off the covering cap -1-2-3- . See Fig 1 .
2	Cover in passenger's footwell	Unscrew both plastic screws -4-5- . See Fig 1 .
3	Lowering the current distributor	Disconnect the tie-wrap -7-6-6-A-arrow- . See Fig 1 .
4	Opening the current distributor	Disengage the lock -arrow-8-green-red-blue- . See Fig 1 .
5	Disconnecting the connection lines	Mark the connection lines -C-C-B-9- . See Fig 1 .
