Installing the current distributor

NOTE: The following spare parts must be installed again:

Hexagon nut M 6, 7 pieces

Hexagon nut M 8, 2 pieces

Service label, red

Depending on condition, flange seal current distributor/firewall

Tie-wraps

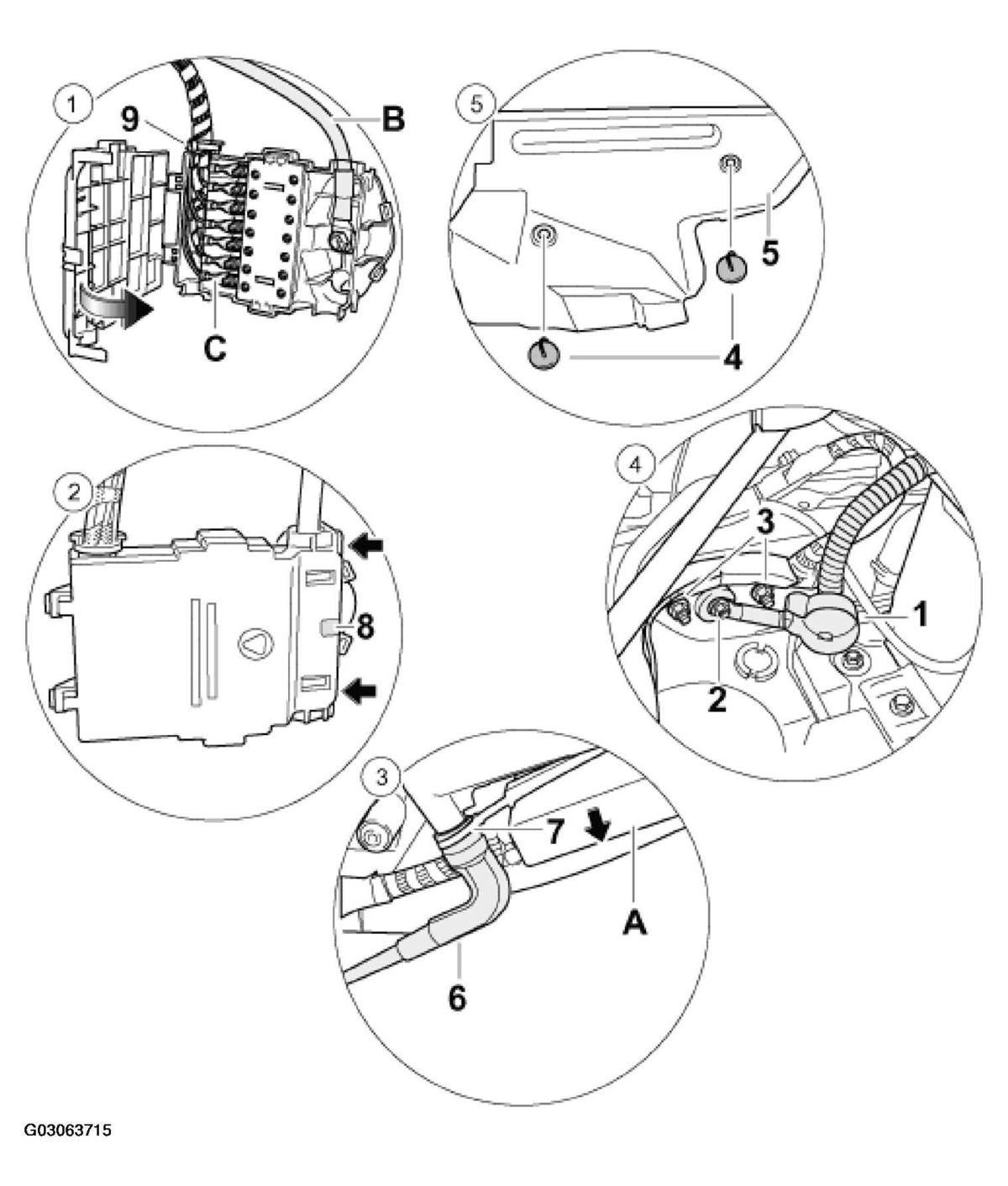

Fig 1: Installing Current Distributor Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CURRENT DISTRIBUTOR INSTALLATION PROCEDURE

No.	Procedure	Instructions
1	Connecting the connection lines	Connect the connection lines -C--B-9- . See Fig 1 .
2	Closing and sealing the current distributor	Close the cover until both locking elements -arrow-8-red- . See Fig 1 .
3	Installing the current distributor	Check the flange seal between the current distributor and the firewall for damage and replace, if necessary. Push the current distributor -A-direction of the arrow-A-6-7- . See Fig 1 .
4	Screwing the current distributor tight	Tighten both hexagon nuts -3-2-1- . See Fig 1 .
5	Cover in passenger's footwell	Position the cover -5-4- . See Fig 1 .
	Connecting the battery	Refer to WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
	Installing the cowl panel cover	Refer to REMOVING AND INSTALLING COWL PANEL COVER .
