Installing optical contacts on socket side
- Remove the dust boot right before plugging.
- Check the proper condition of the contact.
- At a force of 10 N (7.5 ftlb.) the springs installed in the joint will be pressed together. This leads to an increase in attenuation, which could lead to system impairment and system failure. Therefore, a maximum of 10 N (7.5 ftlb.) can be used to pull the LWL from the joint.

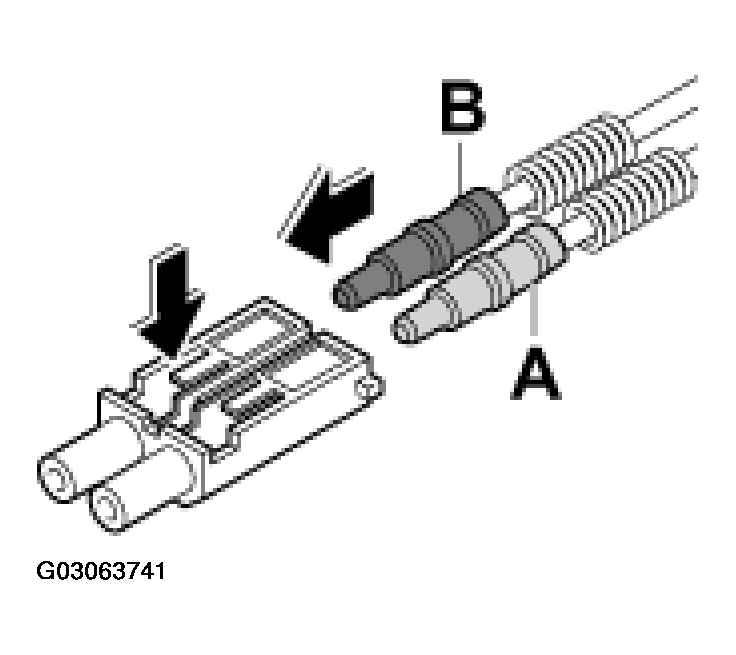

- Insert the optical contacts -B-
and -A-
in the module until it engages audibly. Check the optical contacts for tightness.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

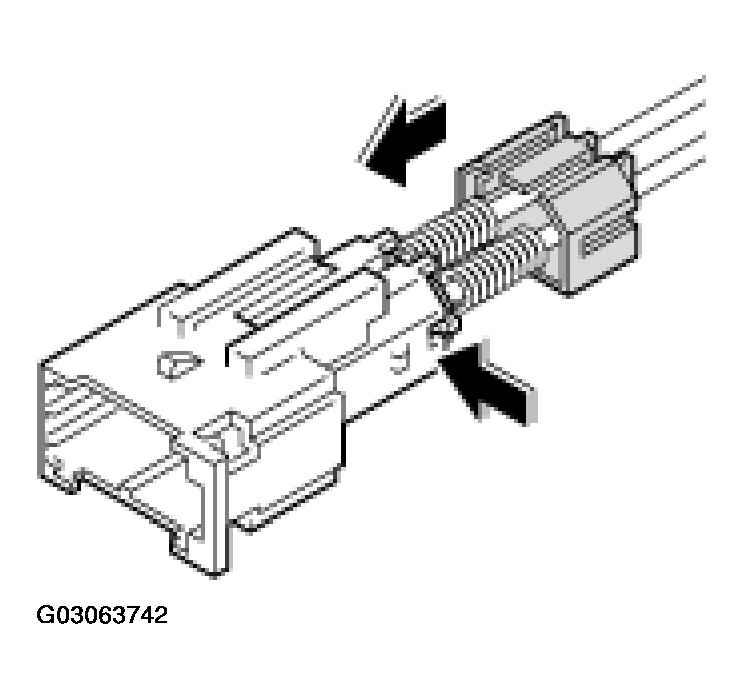

- Insert the module in the joint on the socket side.
- Slide the spring cap on the joint until it can be felt to engage -arrow-
.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
