Removing and installing optical contacts: Notes

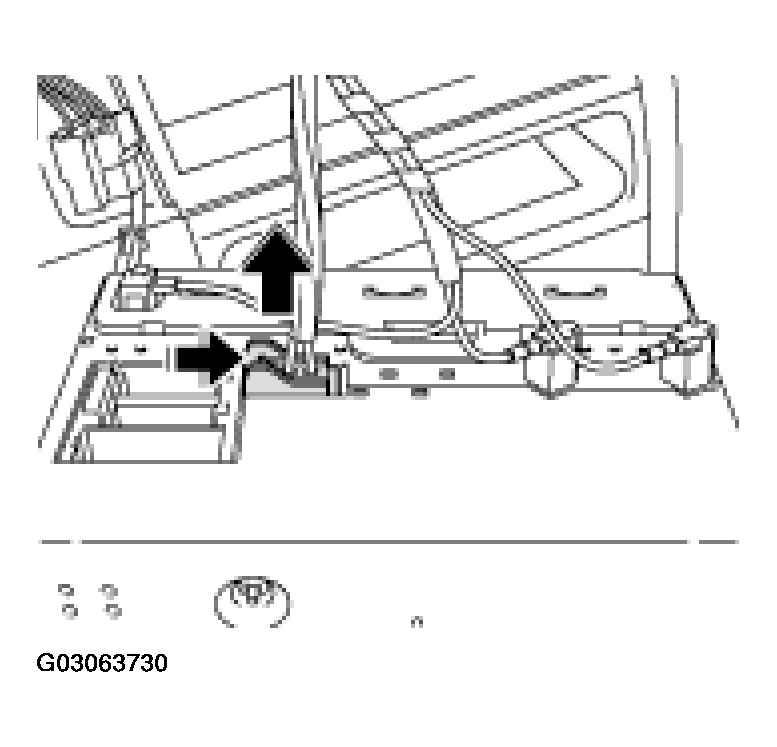

Disconnecting the plug connection on the PCM:

Fig 1: Disconnecting Plug Connection On PCM
G03063730Courtesy of PORSCHE OF NORTH AMERICA, INC.

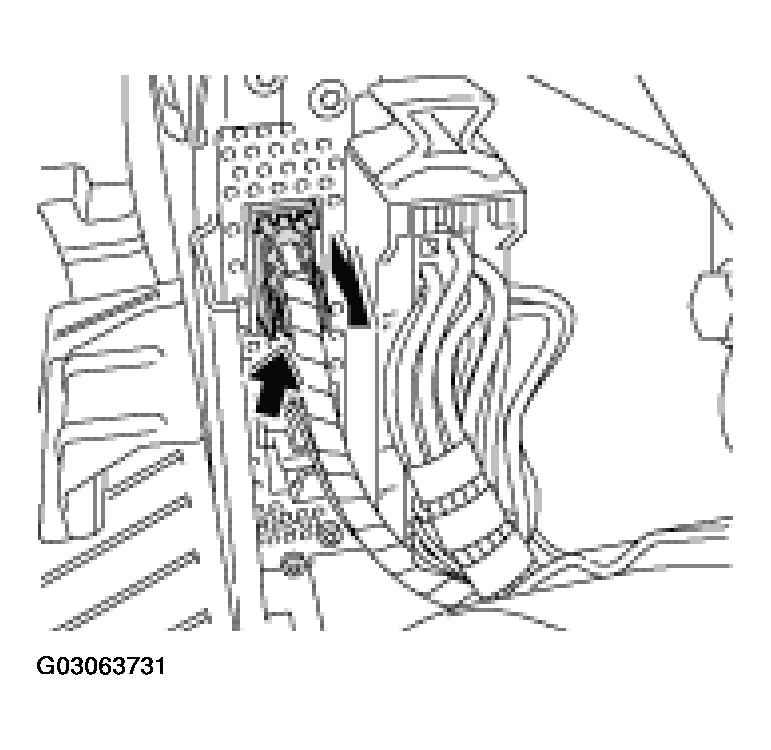

Disconnecting the plug connection on the amplifier:

Fig 2: Disconnecting Plug Connection On Amplifier
G03063731Courtesy of PORSCHE OF NORTH AMERICA, INC.

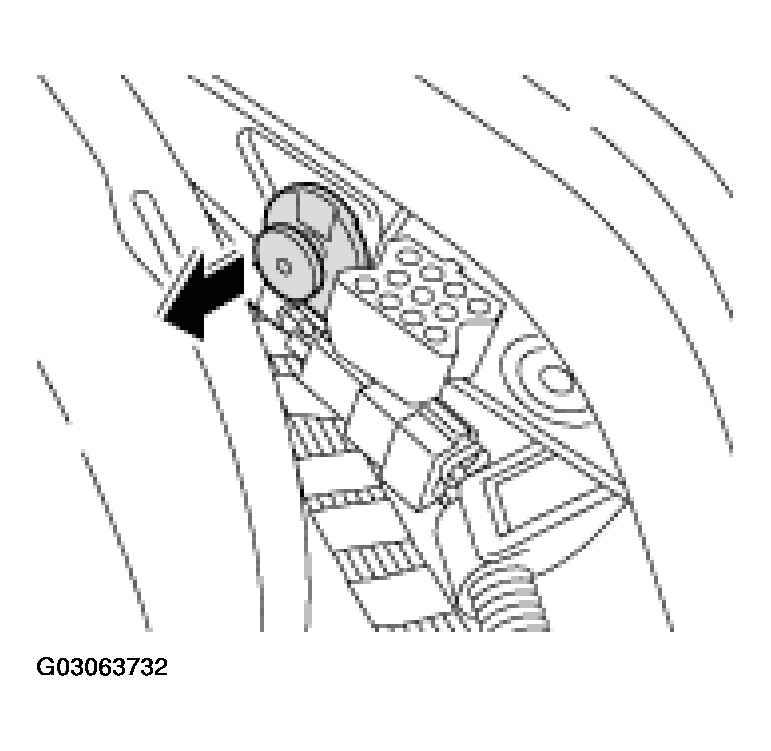

Disconnecting the joint in the front luggage compartment:

Fig 3: Disconnecting Front Luggage Compartment Joint
G03063732Courtesy of PORSCHE OF NORTH AMERICA, INC.

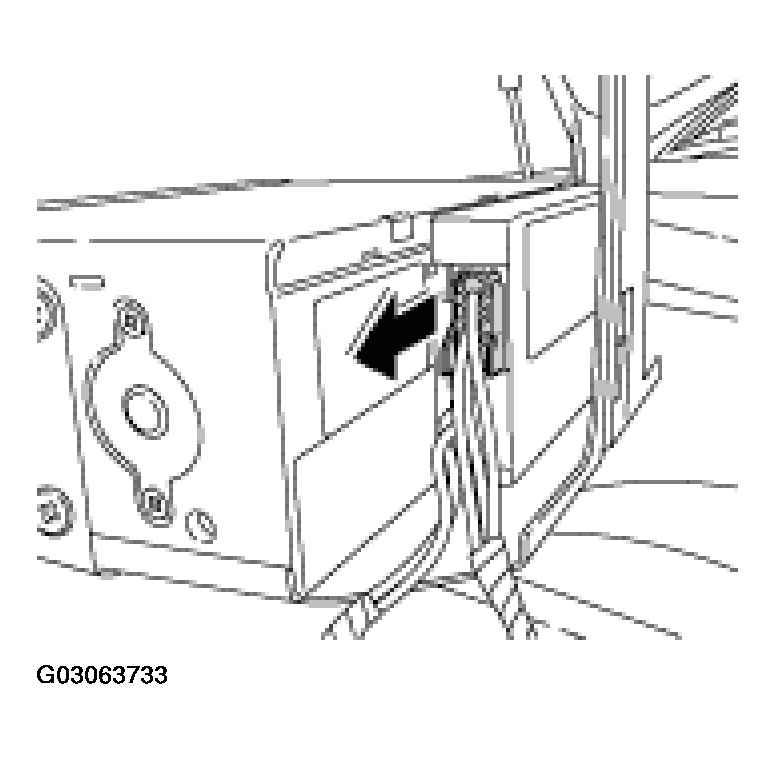

Disconnecting the plug connection on the CD changer:

Fig 4: Disconnecting Plug Connection On CD Changer
G03063733Courtesy of PORSCHE OF NORTH AMERICA, INC.

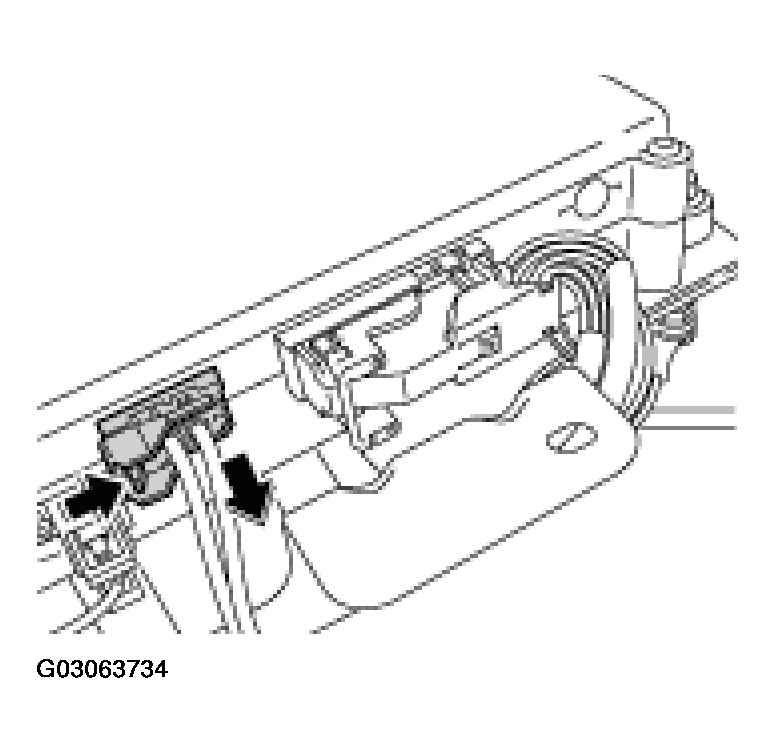

Unplugging the control unit plug connection for the telephone:

Fig 5: Unplugging Control Unit Plug Connection For Telephone
G03063734Courtesy of PORSCHE OF NORTH AMERICA, INC.
