Diagram: ABS/TC 5.3 (4-channel system)

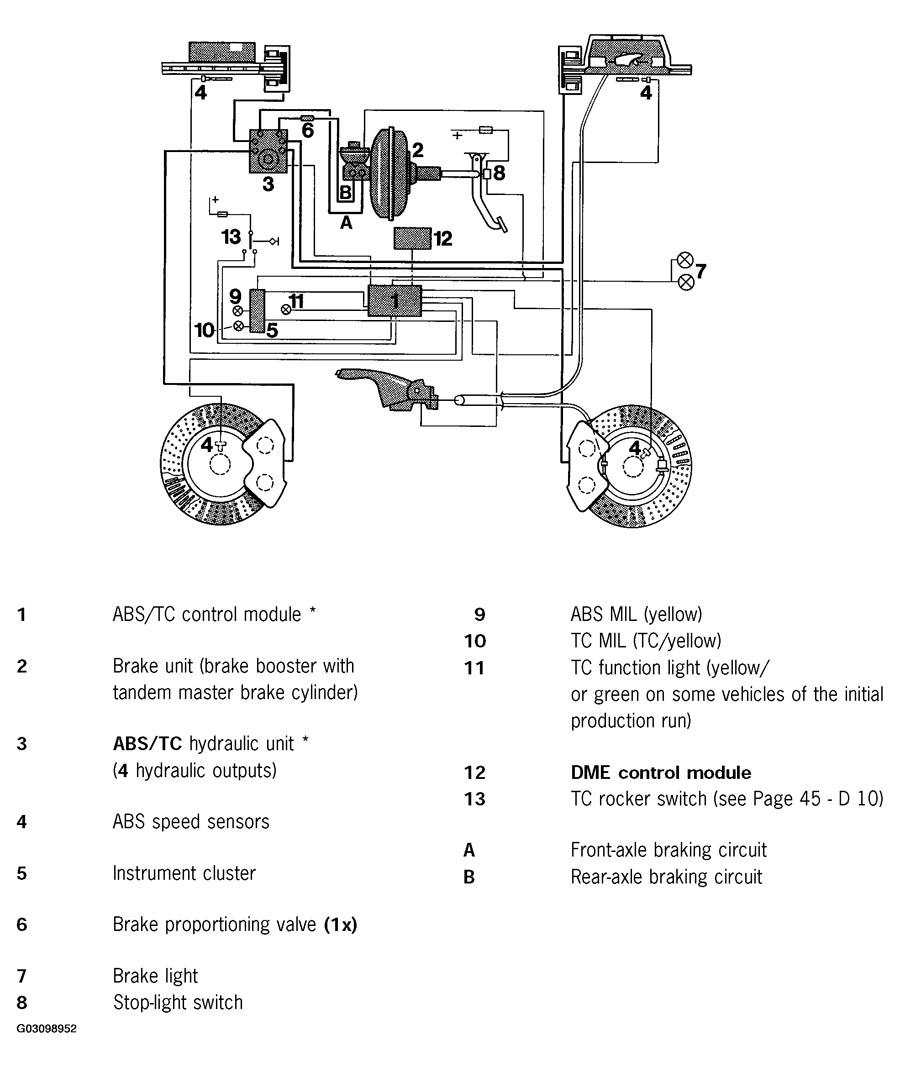

Fig 1: ABS/TC 5.3 Diagram (4-Channel System)

G03098952

Courtesy of PORSCHE OF NORTH AMERICA, INC.
