Diagram: ABS 5.3 (3-channel system)

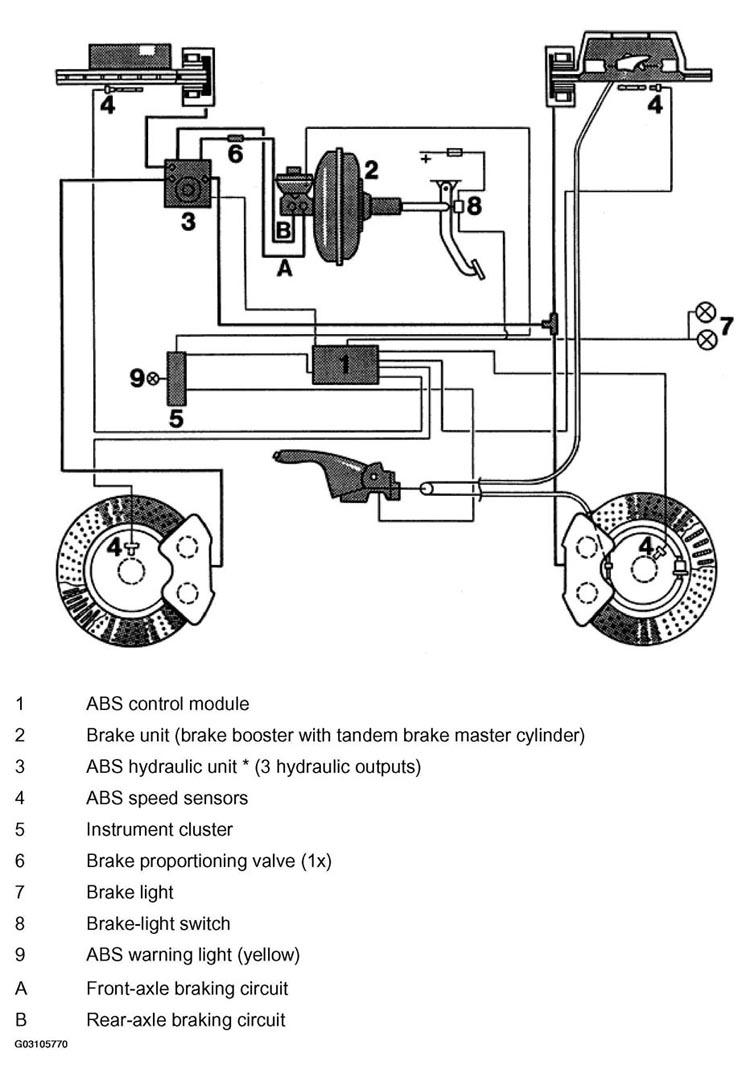

Fig 1: Diagram Of ABS 5.3 (3-Channel System)
G03105770Courtesy of PORSCHE OF NORTH AMERICA, INC.

Control module, hydraulic unit, pump-motor relay and valve relay form a unit, which is located next to the brake master cylinder.
