Rate-of-turn sensor: Notes

CAUTION: The rate-of-turn sensor is a micro-mechanical component and is very sensitive to impacts!

If the rate-of-turn sensor with part No. 996.606.147.00 is determined to be faulty, install the new rate-of-turn sensor with part No. 996.606.145.00.

Rate-of-turn sensor with part No. 996.606.145.00.

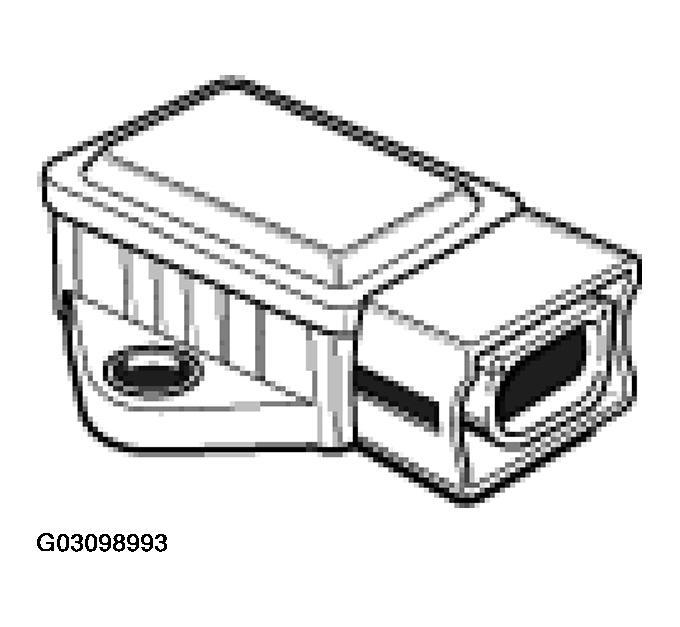

Fig 1: Identifying Rate-Of-Turn Sensor (Part No. 996.606.145.00)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The new rate-of-turn sensor can be retrofitted. In vehicles up to model 07/00 the holder of the front centre console and the centre console support at the bottom front must be additionally replaced.
