Control module replacment PSM 5.7

If the control module is damaged, the complete hydraulic unit with integrated control module must be replaced.

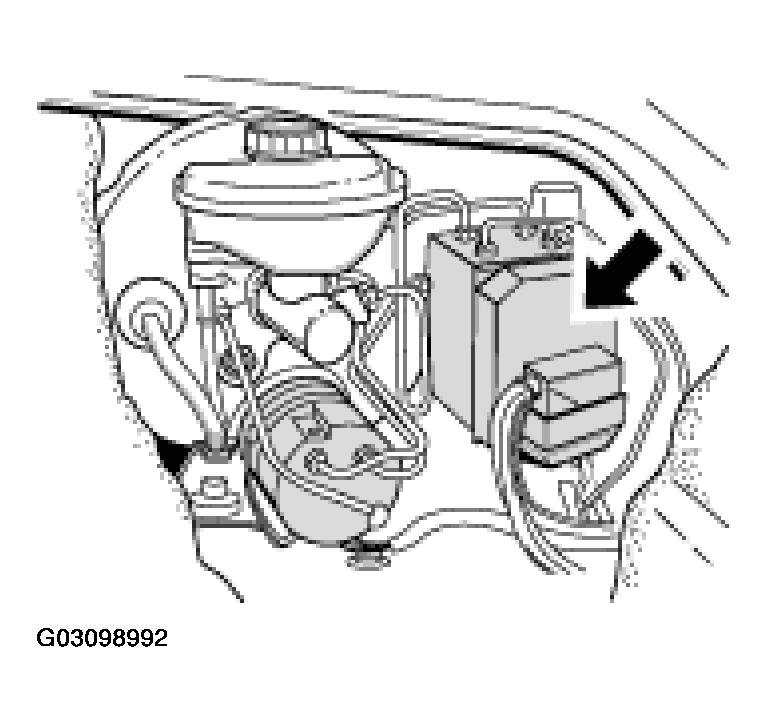

Fig 1: Identifying Control Module Replacment, PSM 5.7

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Observe the following points:

• The control module must be coded for the corresponding type of transmission (manual transmission/Tiptronic).
• The Vehicle Identification Number must be entered.
• A static test and the swap test must be carried out with the PST2.
  NOTE: Observe the allocation to the rate-of-turn sensor! The control module as of 08/00 performs a self-test of the rate-of-turn sensor. This control module must be installed only in combination with the rate-of-turn sensor with part No. 996.606.145.00.
