Control module replacment PSM 5.3

If the control module is damaged, only the control module without the hydraulic unit must be replaced.

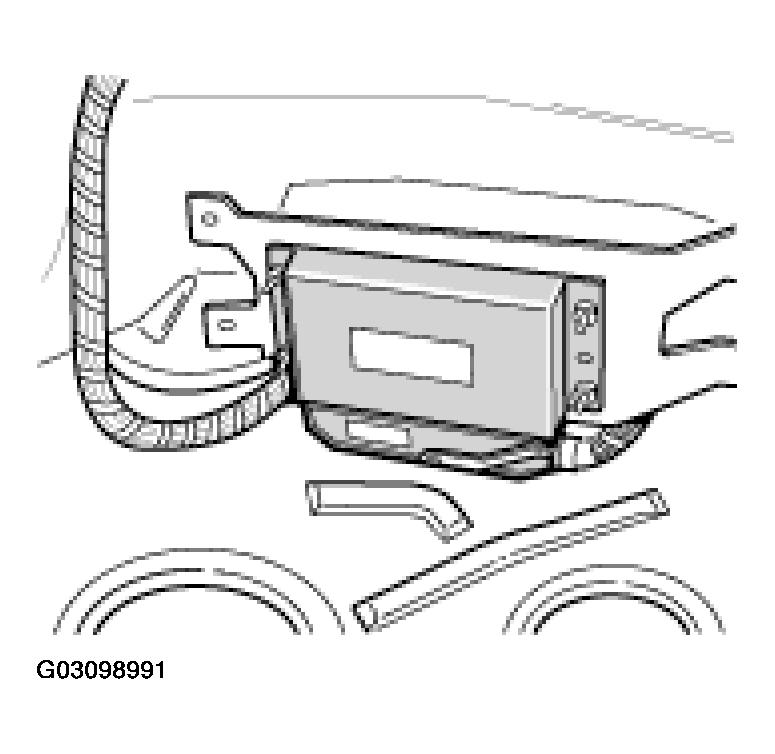

Fig 1: Identifying Control Module Replacment, PSM 5.3

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Observe the following points:

• The control module must be coded for the corresponding type of transmission (manual transmission/Tectonic).
• The Vehicle Identification Number must be entered.
• A static test and the swap test must be carried out with the PST2.
