Ground point 2

Ground point 2 is located on the left at the front of the luggage compartment.

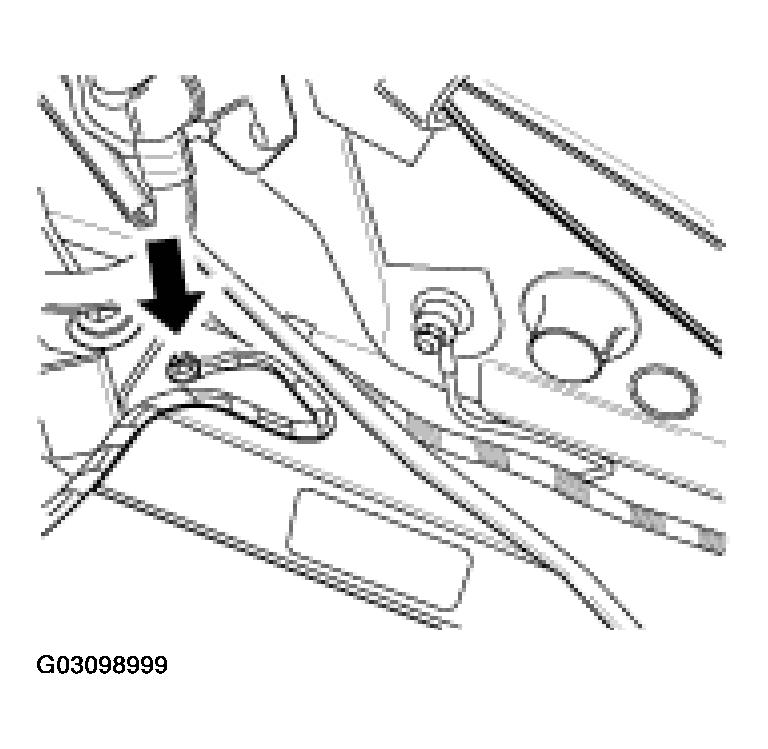

Fig 1: Identifying Ground Point 2 On Left, At Front Of Luggage Compartment
G03098999Courtesy of PORSCHE OF NORTH AMERICA, INC.
