Ground point 2

Ground point 2 is located on the left at the front end (KS front left)

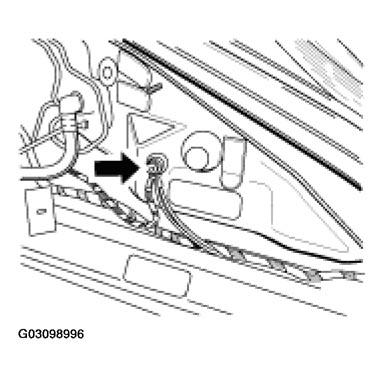

Fig 1: Identifying Ground Point 2

G03098996

Courtesy of PORSCHE OF NORTH AMERICA, INC.
