PSM OFF switch

The system can be switched off by means of a switch in the centre console. System deactivation is displayed by the indicator light in the PSM switch and in the instrument cluster. The ABD function (automatic brake differential) is maintained when the PSM is switched off. For safety reasons, the driving dynamics control is reactivated temporarily for the duration of one brake pedal actuation.

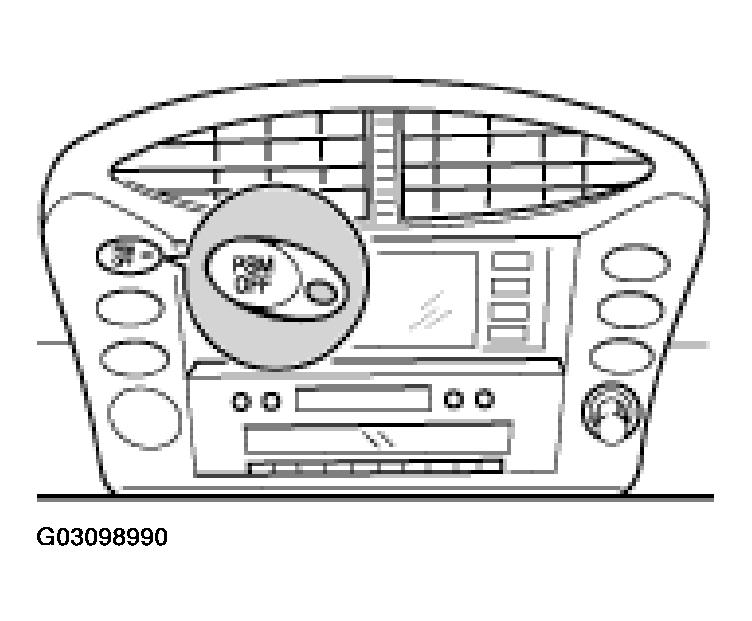

Fig 1: Identifying PSM OFF Switch
G03098990Courtesy of PORSCHE OF NORTH AMERICA, INC.
