Lateral acceleration sensor PSM 5.3

The lateral acceleration sensor is installed on the centre console in longitudinal direction.

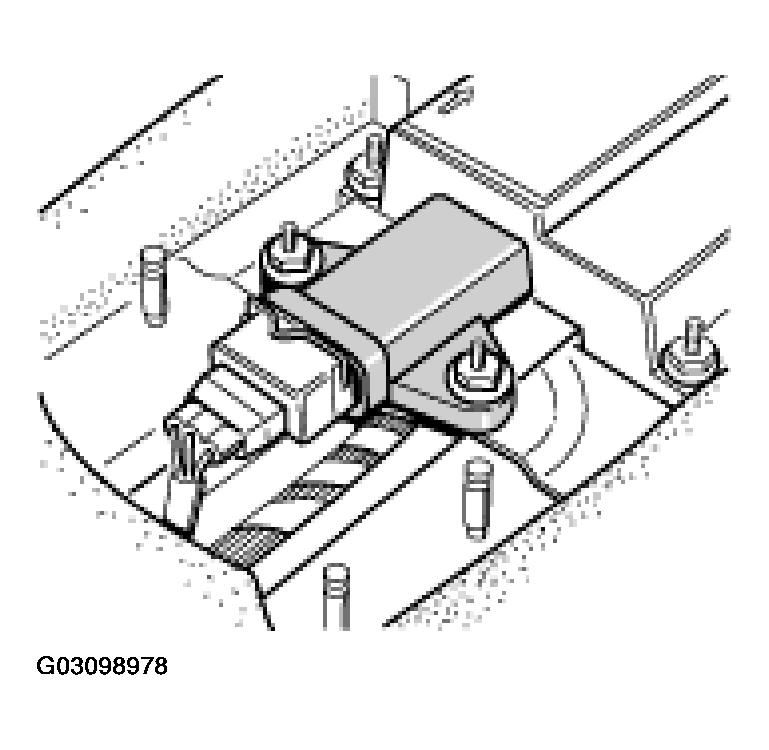

Fig 1: Identifying Lateral Acceleration Sensor, PSM 5.3

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The transverse acceleration sensor supplies information about the transverse accelerations occurring in the vehicle to the PSM control module. Together with the information from the steering-angle sensor and the rate-of-turn sensor, the current handling behaviour with respect to its transverse dynamics is calculated. The sensor element is a damped spring-and-mass system.

Its deflection is detected magnetically using a linear Hall element. The deflection is a direct measure of the occurring transverse accelerations.
