Brake pressure sensor PSM 5.7

The brake pressure sensor is on the hydraulic unit on the PSM 5.7.

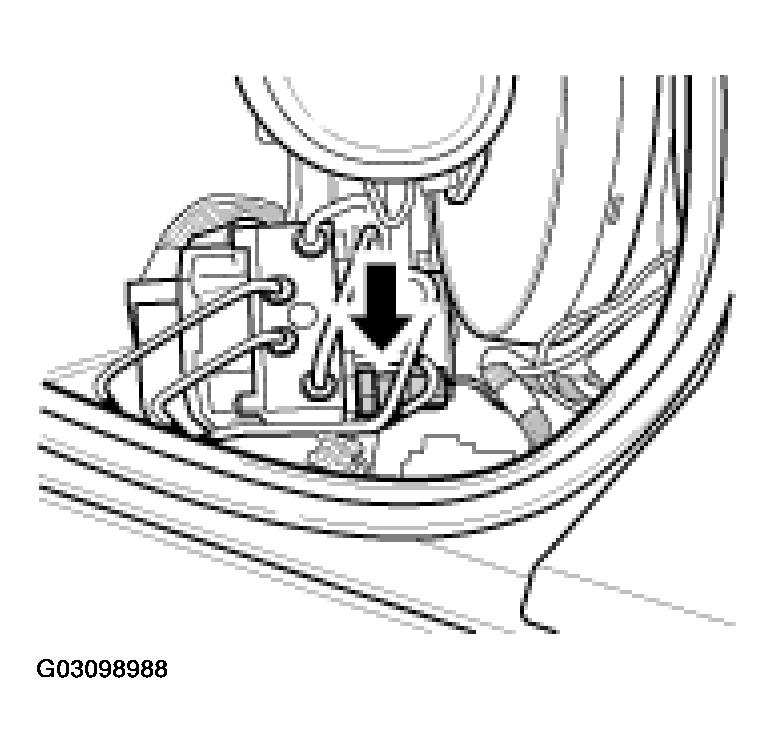

Fig 1: Identifying Brake Pressure Sensor, PSM 5.7

G03098988

Courtesy of PORSCHE OF NORTH AMERICA, INC.
