Brake pressure sensor PSM 5.3

The brake pressure sensor is located on the booster pump on the PSM 5.3.

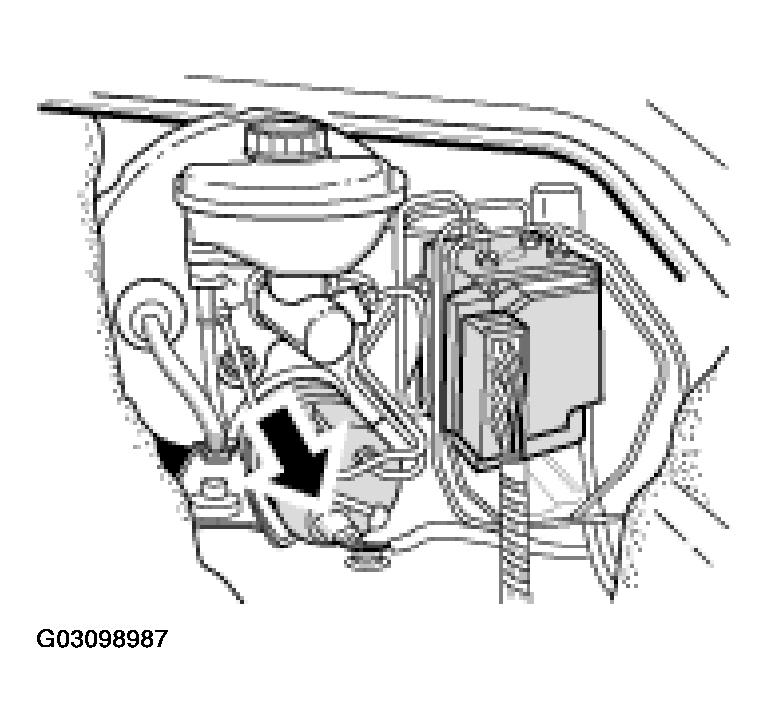

Fig 1: Identifying Brake Pressure Sensor, PSM 5.3

G03098987

Courtesy of PORSCHE OF NORTH AMERICA, INC.
