Booster pump Carrera 4

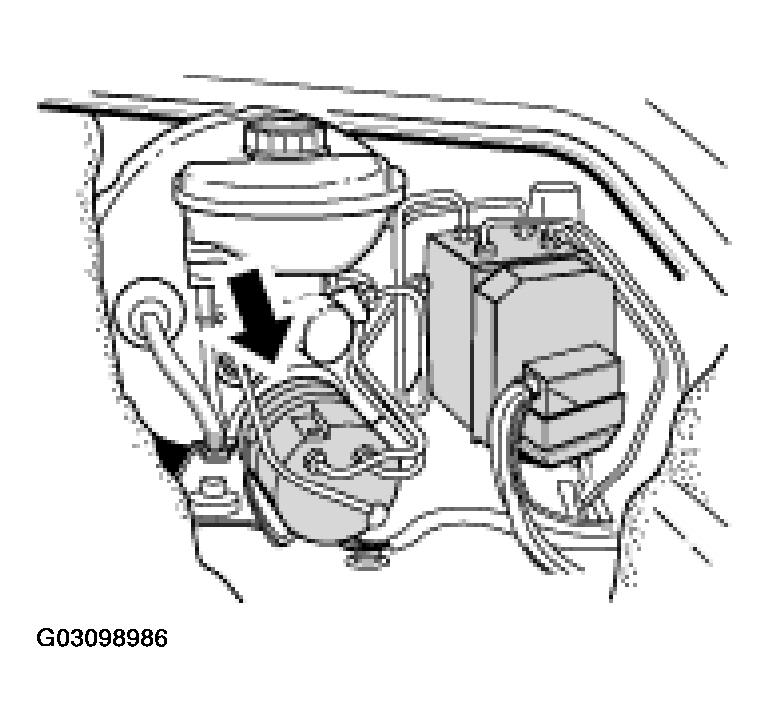

Fig 1: Identifying Booster Pump, Carrera 4

G03098986

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The booster pump is located next to the hydraulic unit in the Carrera 4.
