Booster pump Carrera 2

The booster pump is located on the opposite side of the hydraulic unit in the Carrera 2.

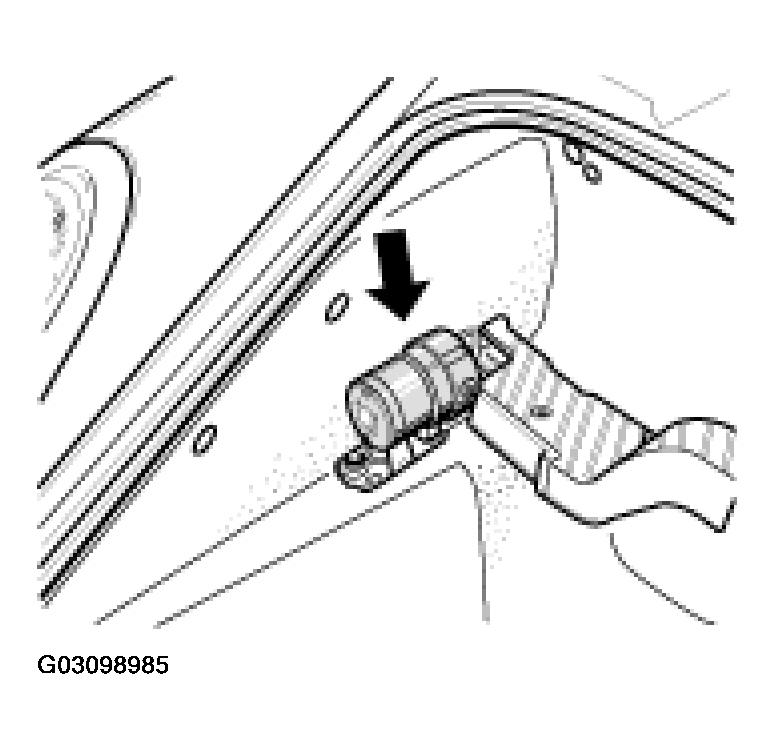

Fig 1: Identifying Booster Pump, Carrera 2

G03098985

Courtesy of PORSCHE OF NORTH AMERICA, INC.
