Booster pump Carrera 4

The booster pump in the 911 Carrera 4 is located next to the hydraulic unit.

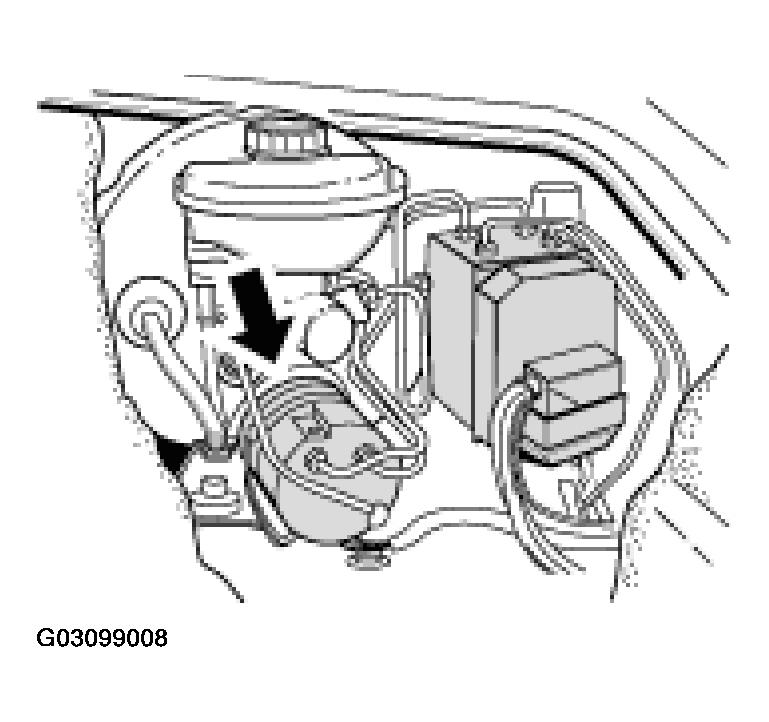

Fig 1: Identifying Booster Pump, Carrera 4

G03099008

Courtesy of PORSCHE OF NORTH AMERICA, INC.
