Booster pump Carrera 2

The booster pump is located at the front right in the 911 Carrera 2.

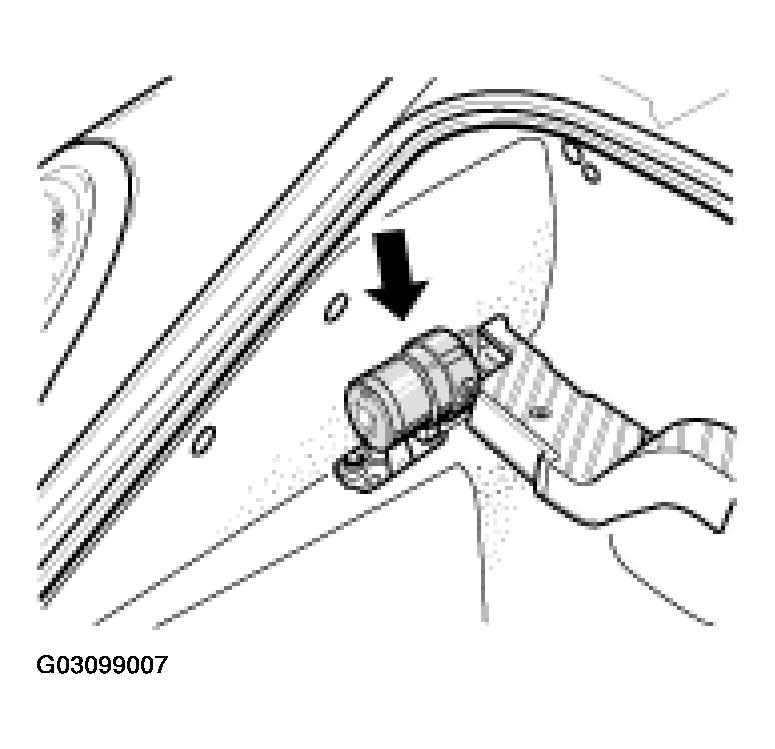

Fig 1: Identifying Booster Pump, Carrera 2

G03099007

Courtesy of PORSCHE OF NORTH AMERICA, INC.
