PSM 5.7/ 911 Carrera (996) 2/4, Model Year 2000 & Up

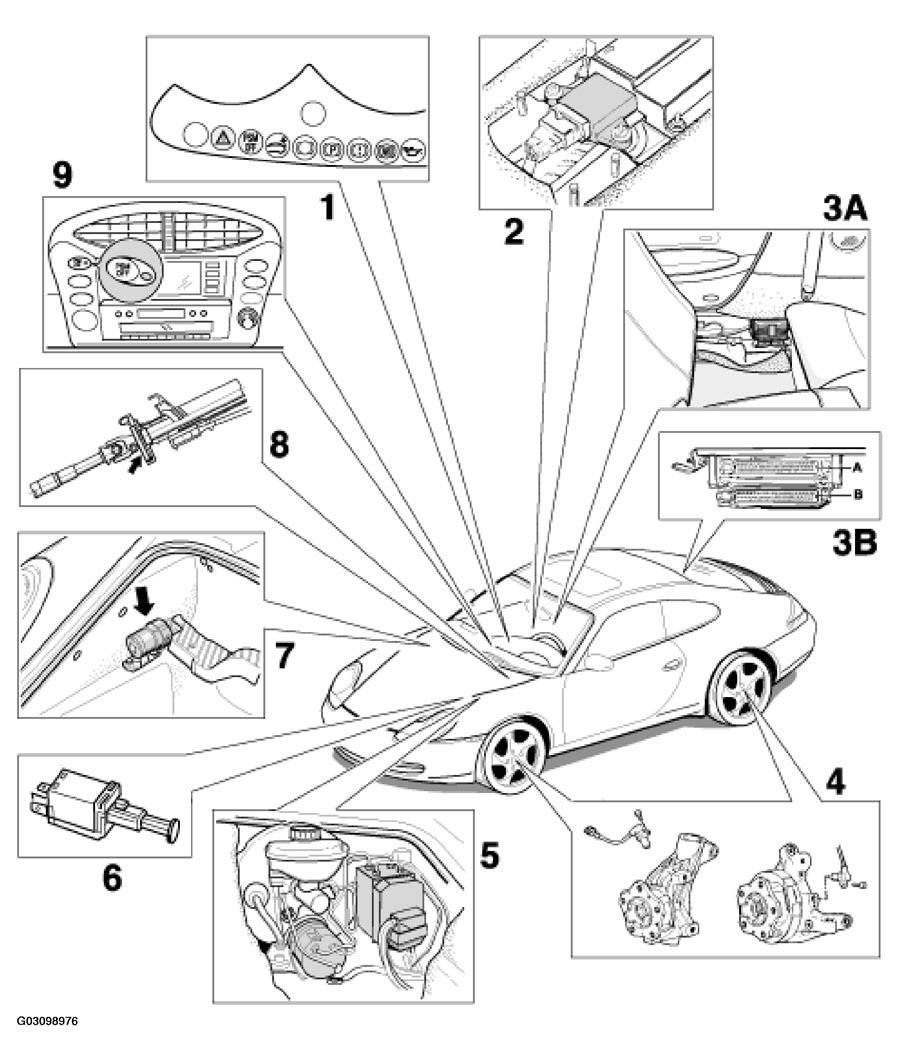

Fig 1: Identifying Component Arrangement Of PSM 5.7/ 911 Carrera (996) 2/4 - Model Year 2000 & Up

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Information and warning light
NOTE: The information and warning lights in the instrument cluster are controlled via the CAN bus as of model year 2002.
Rate-of-turn sensor with integrated transverse acceleration sensor
Control modules
3 A: Tiptronic control modules as of model year 2002

3 B: A - DME control module

3 B: B - Tiptronic control module up to model year 2001
Speed sensors
Brake system
Booster pump Carrera 4
Stop light switch
Booster pump
Carrera 2
Steering-angle sensor
PSM OFF switch
