PSM 5.3/ 911 Carrera 4 (996) - Model Year 1999

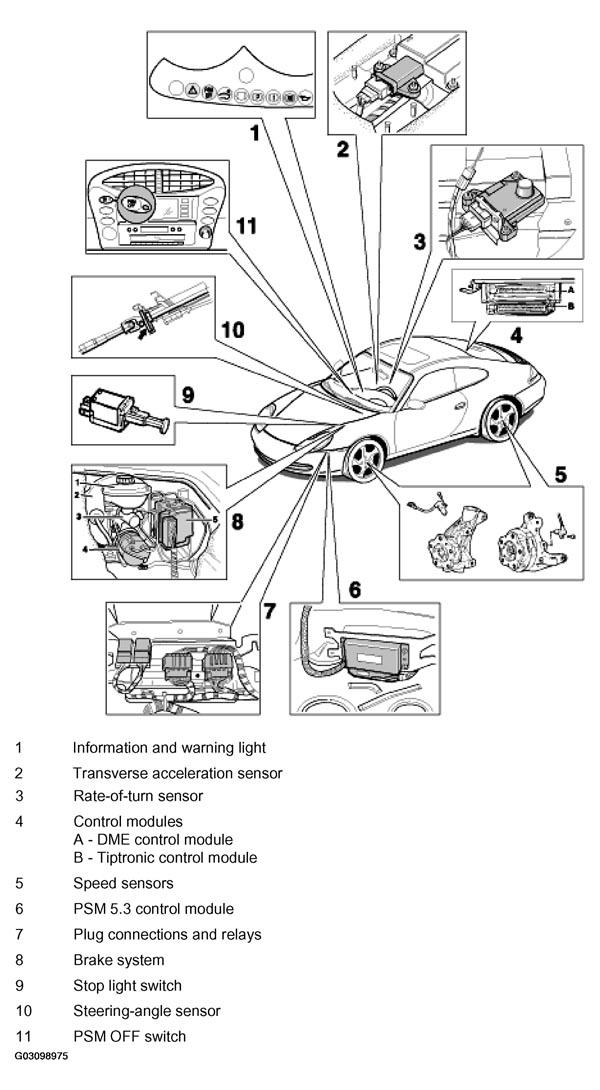

Fig 1: Identifying Component Arrangement Of PSM 5.3/ 911 Carrera 4 (996) - Model Year 1999

G03098975

Courtesy of PORSCHE OF NORTH AMERICA, INC.
