Removing and installing steering angle sensor: Notes

A steering angle sensor -C- is attached to the steering column/steering shaft in the 911 Carrera and 911 Carrera 4 with PSM (Porsche Stability Management)!

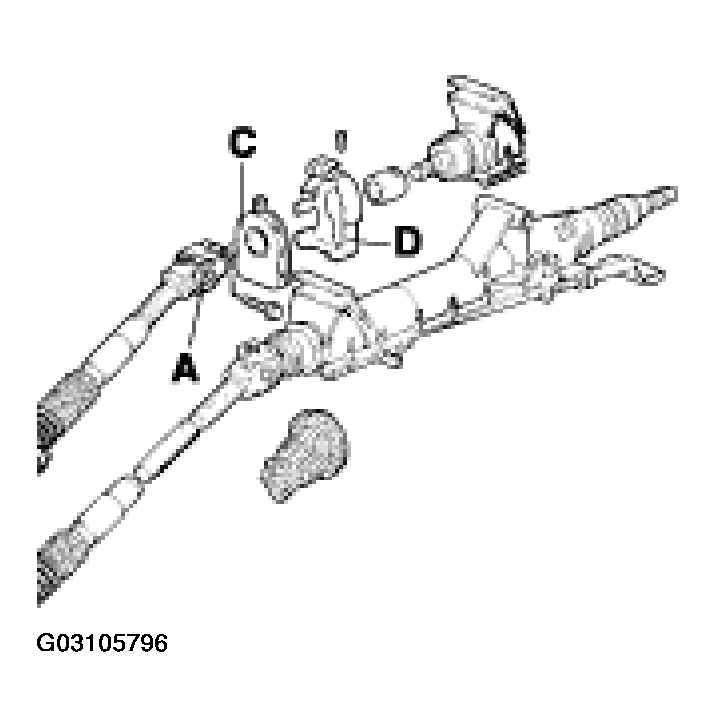

Fig 1: Locating Steering Angle Sensor & Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
The cover -D- remains fitted during removal and installation of the steering angle sensor. In general the removal of the cover -D- is not authorized.

Universal joint of steering shaft
Steering-angle sensor. From amended version of 2003 model. Refer to NOTE ON THE REPLACEMENT OF THE STEERING ANGLE SENSOR - VEHICLES BEFORE MOD. 03 .
Cover
