Component survey

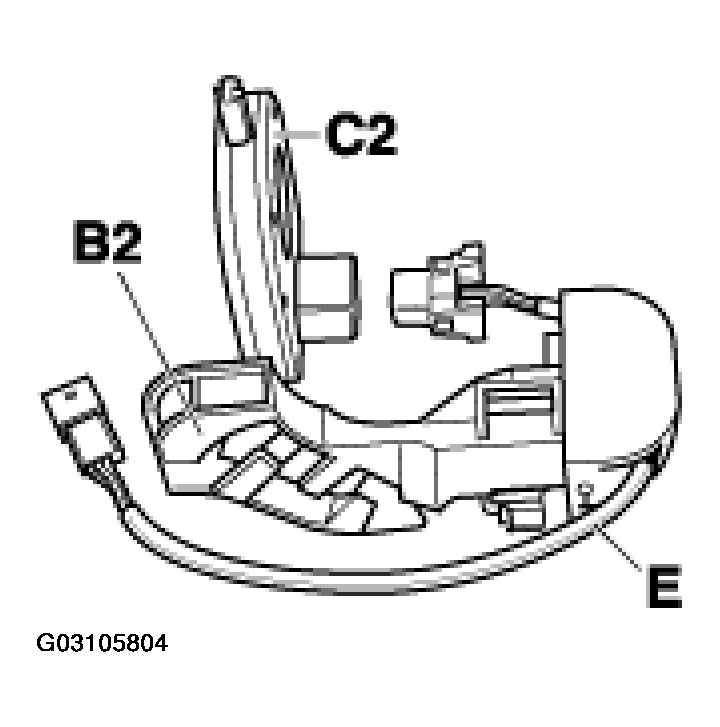

Fig 1: Identifying Components For Steering Angle Sensor - Vehicles Before Mod. 2003
G03105804Courtesy of PORSCHE OF NORTH AMERICA, INC.
DESIGNATION COMPONENTS

Designation New components Replaces component
Steering angle sensor (C2 = new sensor) 996.606.119.00 996.606.109.01
996.606.109.02
Cable guide (B2 = new cable guide) 996.610.123.01 996.610.123.00
Adapter lead -E-  996.622.906.00 Additional lead (connection between the previous lead and the new steering angle sensor)

PIN assignment of the adapter lead -E-

CONNECTOR PIN ASSIGNMENT - ADAPTER LEAD E

-large connector-   -small connector-
Pin 1 Ground Pin 4
Pin 2 + 12 volts (voltage) Pin 3
Pin 3 CAN H Pin 2
Pin 4 CAN L Pin 1
