Removing and installing rear speed sensors: Removal

  1. With ignition switched off, open the combination plug connection at the spring strut and pull out the plug for the speed sensor.
  2. Loosen fastening screw (hexagon socket head bolt) and remove the speed sensor.

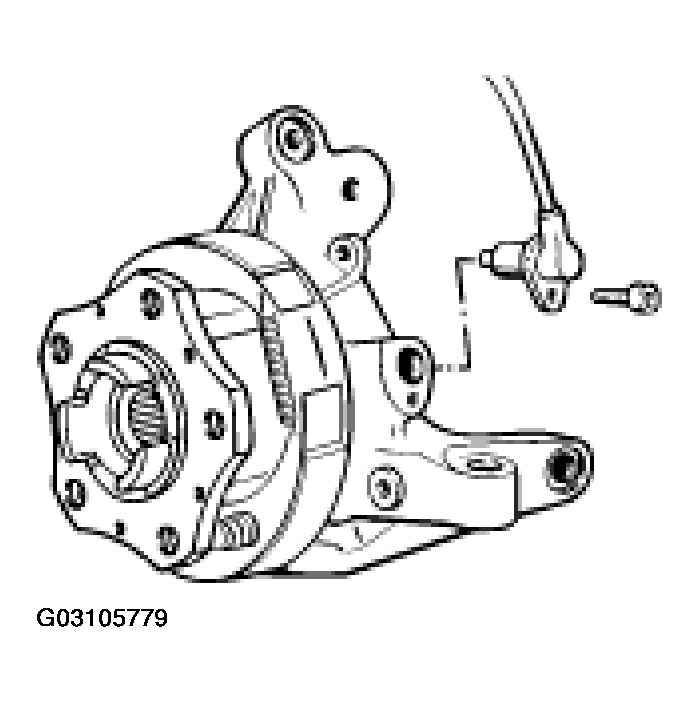

    Fig 1: Removing Speed Sensor
    G03105779Courtesy of PORSCHE OF NORTH AMERICA, INC.
