Removing and installing rate-of-turn sensor - PSM 5.7: Removal

CAUTION: The rate-of-turn sensor is a micro-mechanical component and is very sensitive to impacts!
NOTE: Perform removal and installation with the ignition switched off!
  1. Move the front seats into the rear seat position.
  2. Remove side-panel lining in front of the center console on the left -A-  and right.

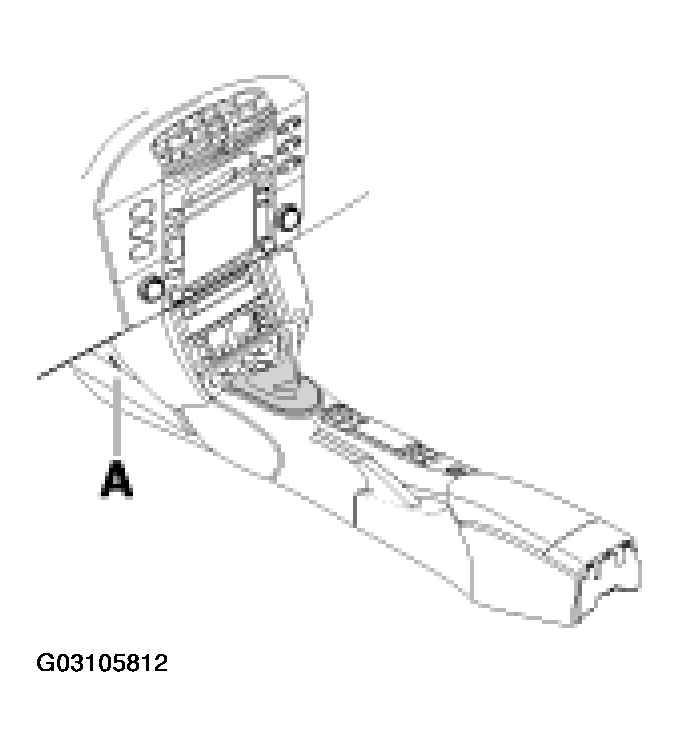

    Fig 1: Removing Side-Panel Lining In Front Of Center Console On Left & Right
    G03105812Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove fastening nuts of the rate-of-turn sensor on the right -arrow-  and left.

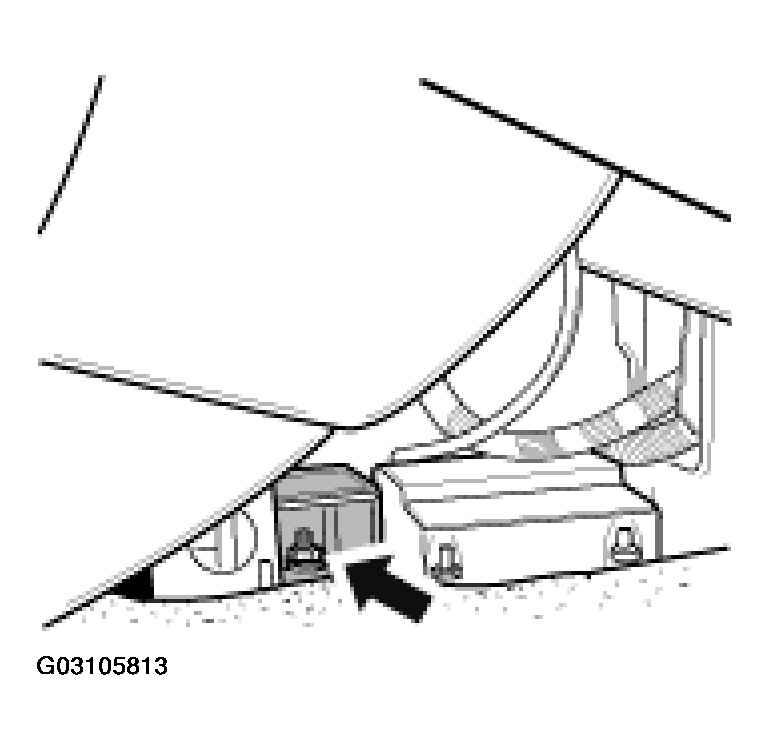

    Fig 2: Removing Fastening Nuts Of Rate-Of-Turn Sensor
    G03105813Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull out the rate-of-turn sensor and unlock and pull off the connector with the ignition switched off.
NOTE: Pull at the connector housing only! Never pull the electrical connections!
