Home >> Porsche >> 2003 >> 911 Carrera 4S, Standard >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Anti-Lock Brake System (Abs) - 5.3 & Abs/TC 5.3 - 911 CARRERA (996) >> Removing and installing rate-of-turn sensor - PSM 5.7 >> Installation

Removing and installing rate-of-turn sensor - PSM 5.7: Installation

  1. Install in reverse order.
  2. After installing the rate-of-turn sensor, read out the PSM fault memory with the Porsche System Tester 2 and erase. Carry out a static test. Then start the engine. The PSM-related lights in the instrument cluster must go out when the engine is running. Read out the PSM fault memory again. There must not be any stored faults.

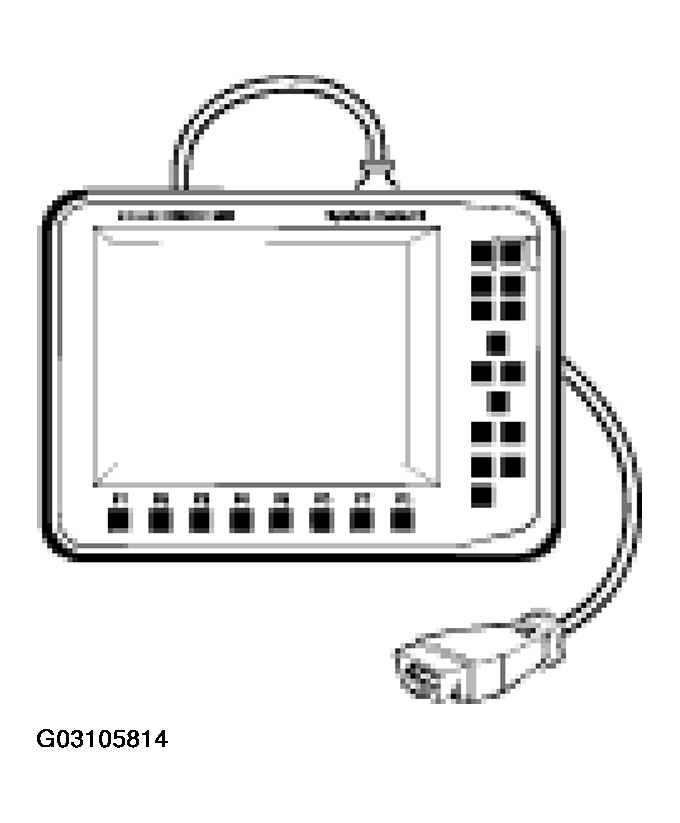

    Fig 1: Identifying Porsche System Tester 2
    G03105814Courtesy of PORSCHE OF NORTH AMERICA, INC.
