Removing and installing front speed sensors: Removal

  1. With ignition switched off, open the combination plug connection at the spring strut and pull out the plug for the speed sensor.
  2. Loosen fastening screw (hexagon socket head bolt) and remove the speed sensor.

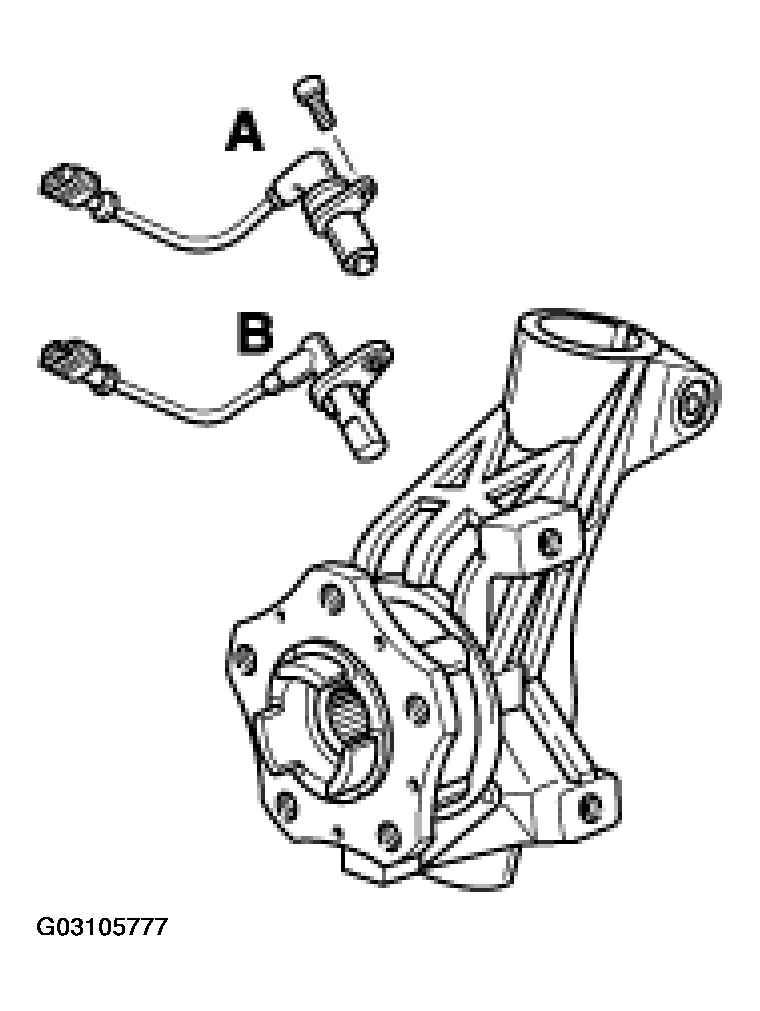

    Fig 1: Removing Front Speed Sensors
    G03105777Courtesy of PORSCHE OF NORTH AMERICA, INC.
