Removing and installing booster pump - RWD vehicles: Removal

NOTE: The booster pump -Arrow- is located on the opposite side to the hydraulic unit.
  1. Switch off ignition.

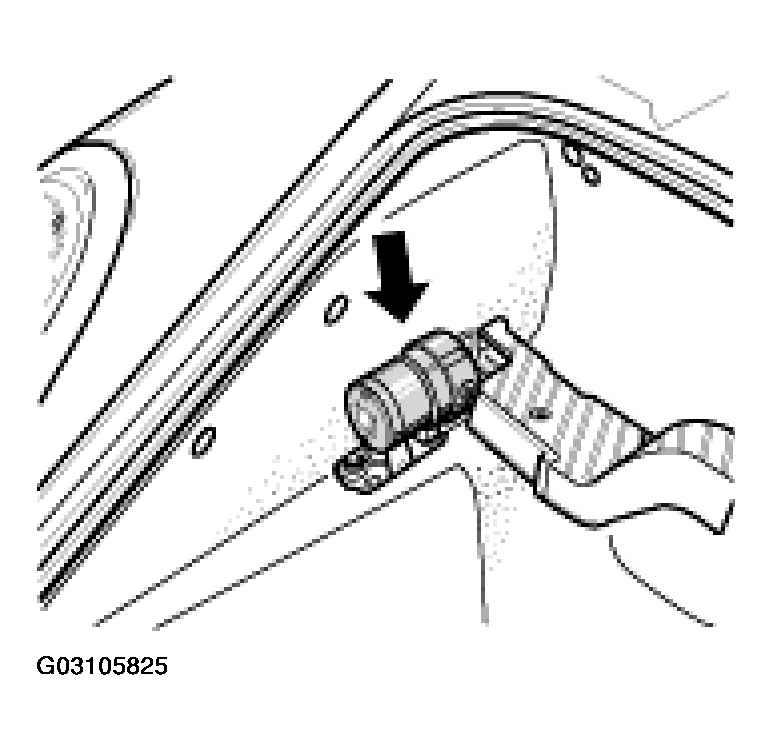

    Fig 1: Identifying Booster Pump
    G03105825Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Remove spare wheel and cover from the booster pump. Remove luggage compartment lining in the area around the booster pump.
  3. For the removal of the booster pump, carry out the following removal steps:

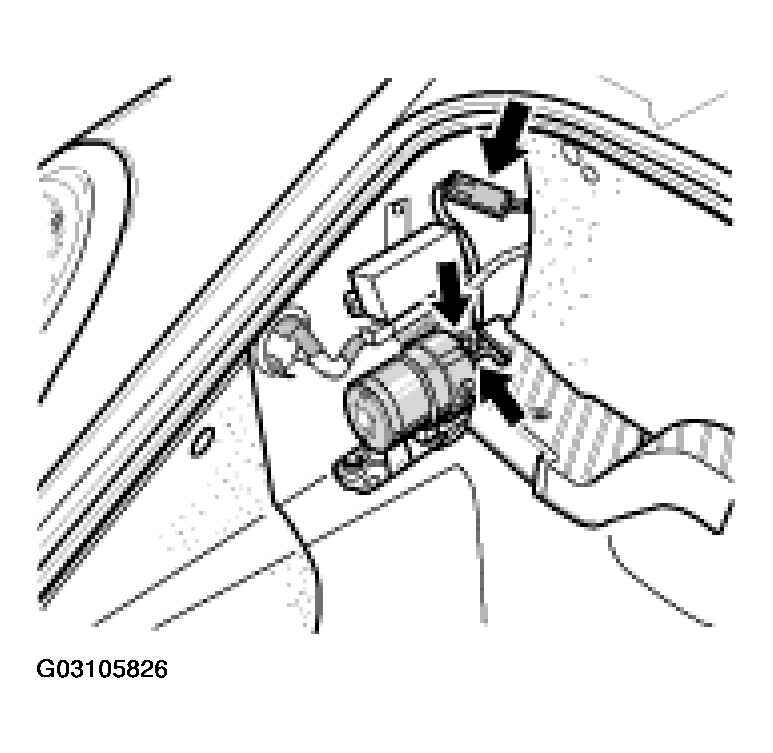

    Fig 2: Removing Booster Pump Components - RWD Vehicles
    G03105826Courtesy of PORSCHE OF NORTH AMERICA, INC.
