Anti-Lock Brake System (Abs) - 5.3 & Abs/TC 5.3 - 911 CARRERA (996)
>>
Removing and installing booster pump for PSM
>>
RWD vehicles
RWD vehicles

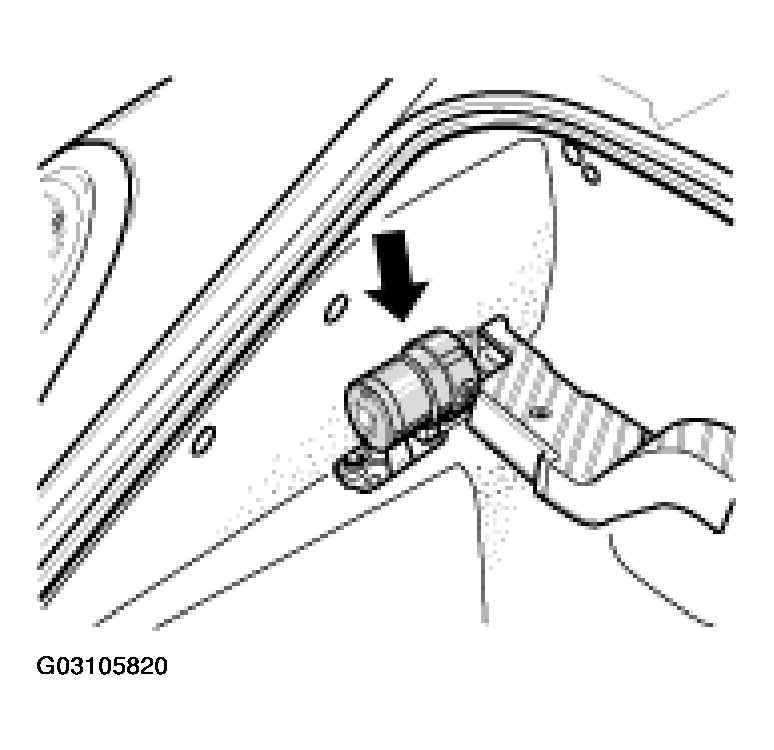

Fig 1: Identifying Booster Pump
Courtesy of PORSCHE OF NORTH AMERICA, INC.
The booster pump
-Arrow-
is located on the opposite side of the hydraulic unit in the 911 Carrera.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
