Steering angle sensor (Serv. No. 45 60)

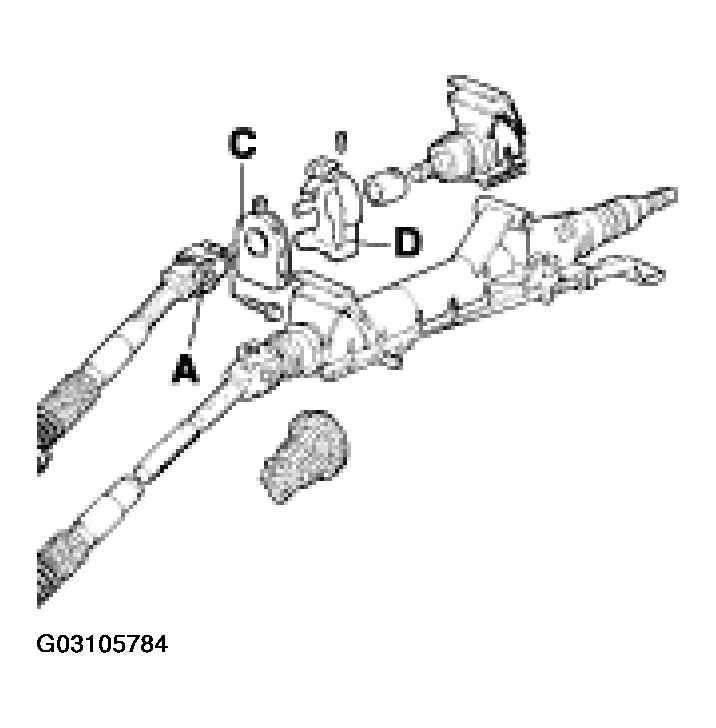

The steering angle sensor -C-  is attached to the steering column in front of the steering intermediate shaft -A-  under the cover -D-.

Fig 1: Identifying Steering Angle Sensor, Steering Intermediate Shaft & Cover
G03105784Courtesy of PORSCHE OF NORTH AMERICA, INC.
