Rate-of-turn sensor - PSM 5.7 (Serv. No. 45 59)

The lateral acceleration sensor is integrated in the rate-of-turn sensor -arrow-  as of PSM 5.7 (as of the 2000 model). The rate-of-turn sensor with integrated lateral acceleration sensor -arrow-  is installed in front of the centre console.

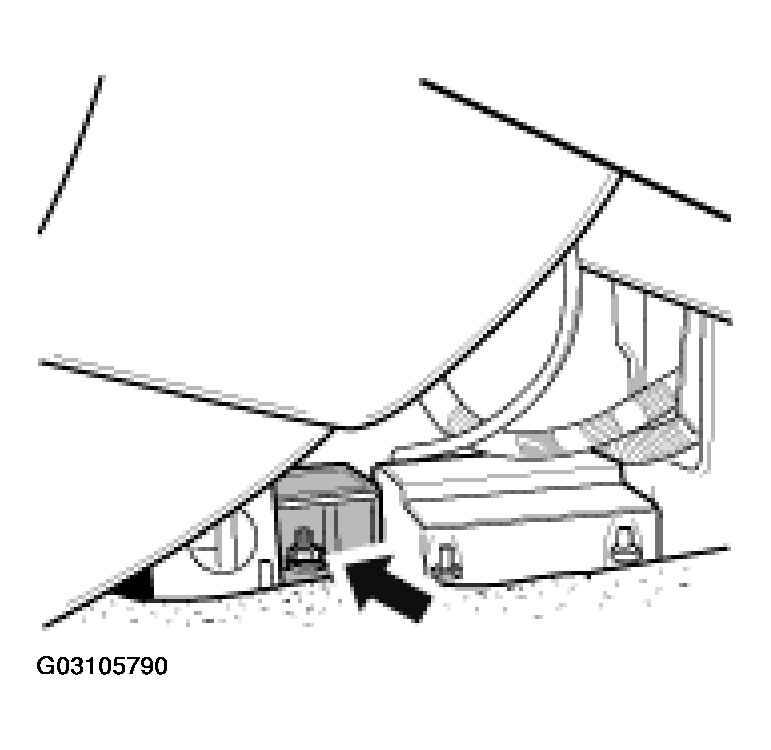

Fig 1: Identifying Rate-Of-Turn Sensor For PSM 5.7

Courtesy of PORSCHE OF NORTH AMERICA, INC.

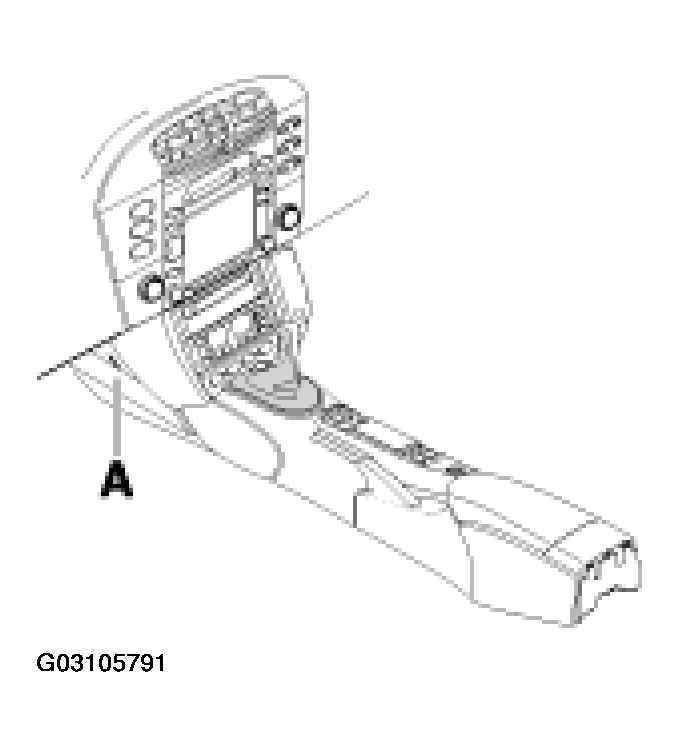

Fig 2: Removing Side-Panel Linings In Front Of Centre Console On Left And Right

Courtesy of PORSCHE OF NORTH AMERICA, INC.
