Hydraulic unit (Serv. No. 45 30)

-D-  Hydraulic unit.

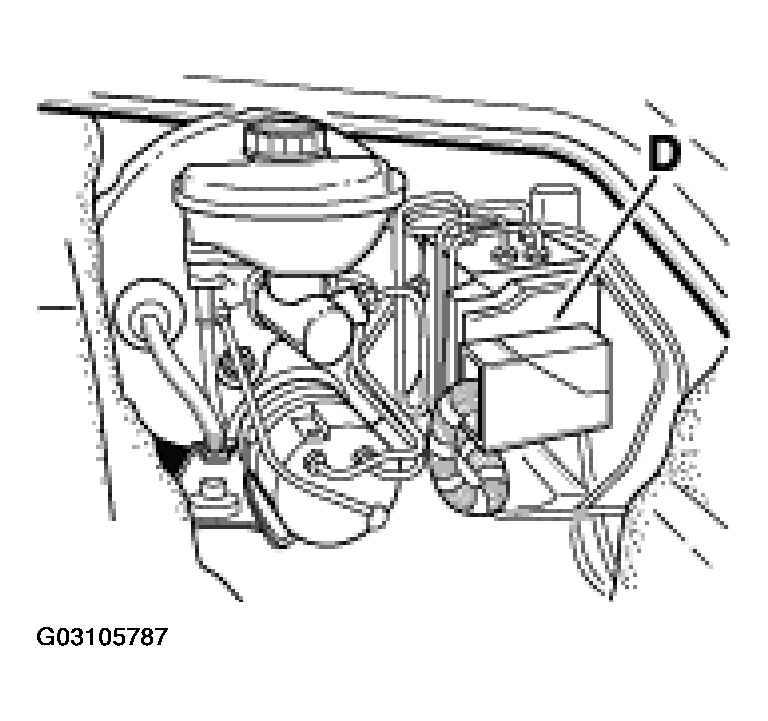

Fig 1: Identifying Hydraulic Unit
G03105787Courtesy of PORSCHE OF NORTH AMERICA, INC.
