Control unit - PSM 5.3 (Serv. No. 45 62)

The control unit (PSM 5.3) is installed underneath a cover in the front-left area of the luggage compartment. The control module connector can only be removed after the control module has been removed.

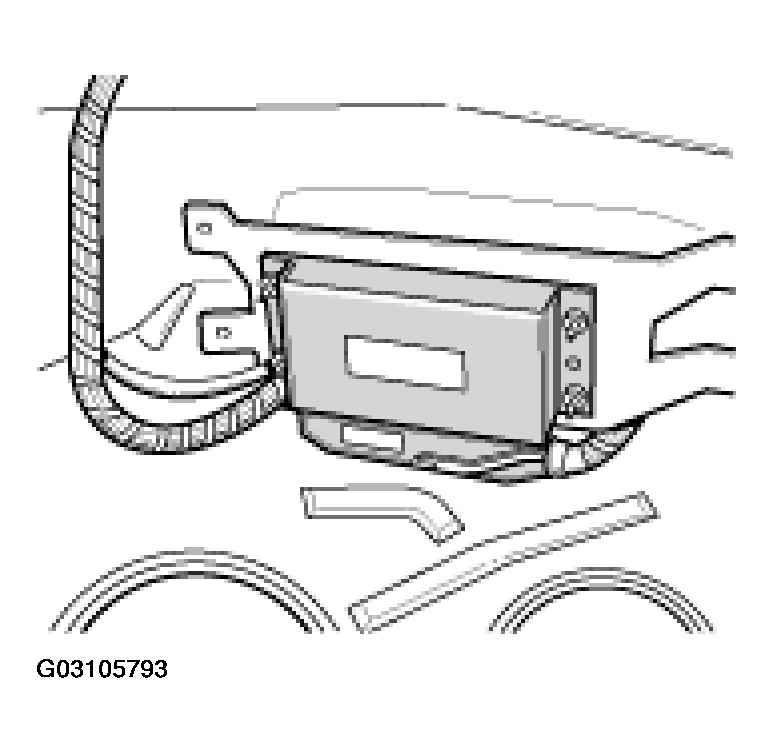

Fig 1: Identifying Control Unit (PSM 5.3)
G03105793Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: The control unit is integrated in the hydraulic unit as of PSM 5.7 (not exchangeable).
