Diagram: ABS / TC 5.3 (4-channel system)

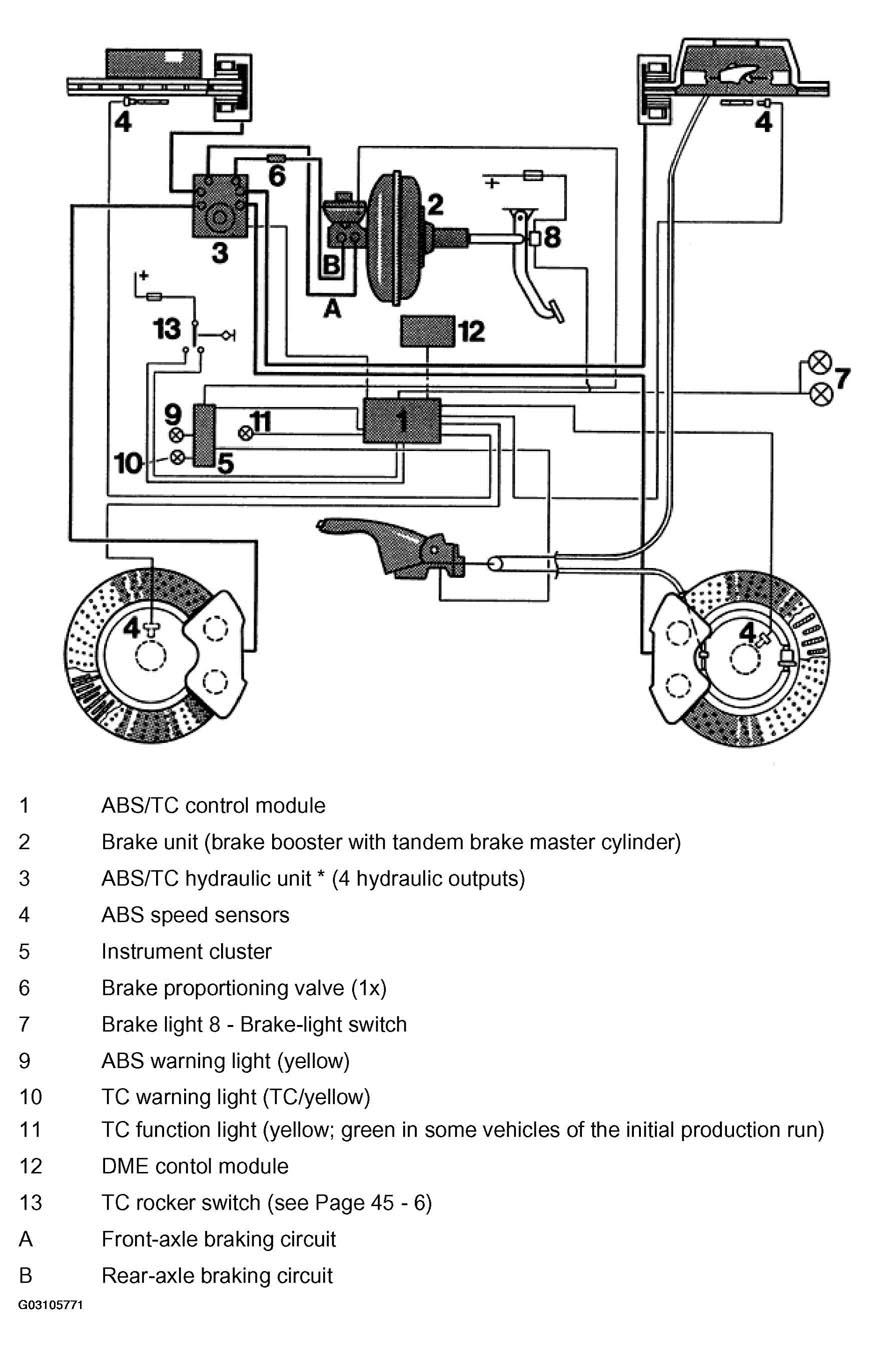

Fig 1: Diagram Of ABS / TC 5.3 (4-Channel System)

G03105771

Courtesy of PORSCHE OF NORTH AMERICA, INC.
