ABS/PSM - check with Porsche System Tester 2: Notes

The test applies for vehicles with Solo ABS, ABS/TC and PSM and is carried out on these systems using the Porsche System Tester 2!

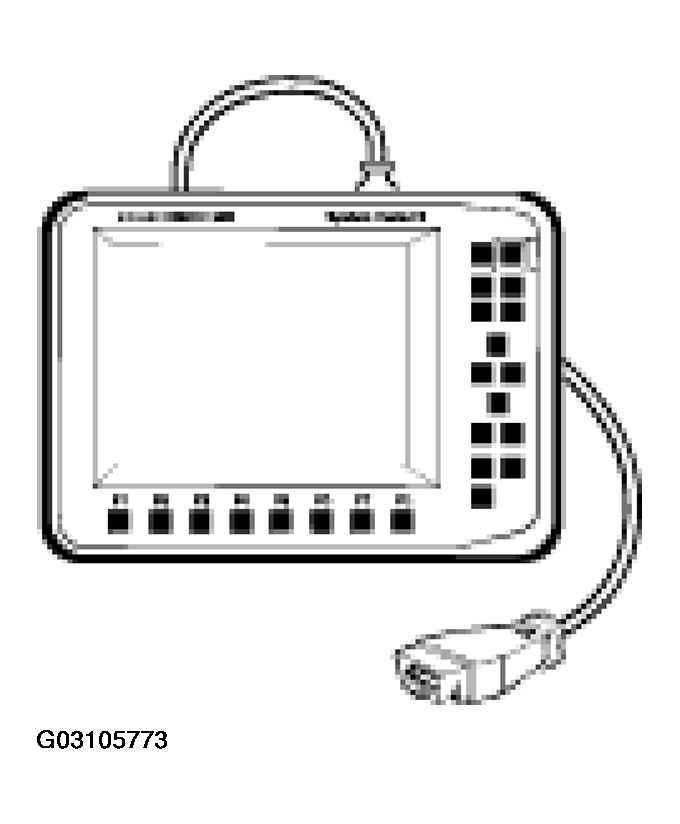

Fig 1: Identifying Porsche System Tester 2
Courtesy of PORSCHE OF NORTH AMERICA, INC.
The Porsche System Tester 2 is connected to the diagnostic socket in the front left footwell! Entry takes place through the ABS system (for vehicles with PSM automatic status change after PSM)!

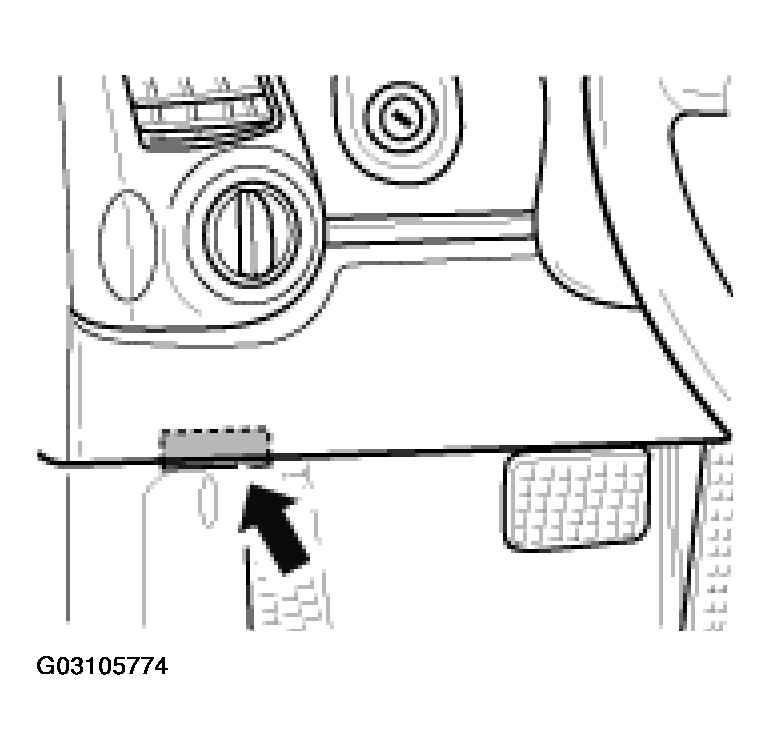

Fig 2: Locating Diagnostic Socket In Front Left Footwell
Courtesy of PORSCHE OF NORTH AMERICA, INC.
