Removing draught deflector

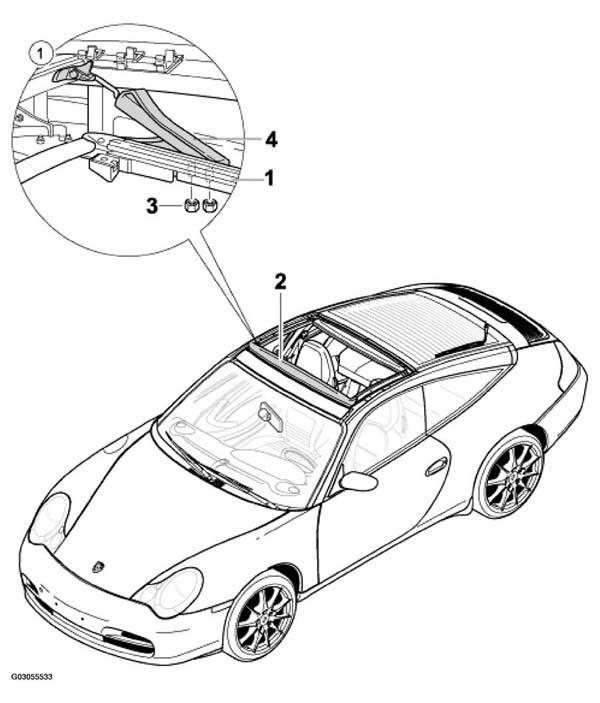

Fig 1: Removing Draught Deflector - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DRAUGHT DEFLECTOR REMOVING PROCEDURE - TARGA

No.	Procedure	Instructions
	Open roof completely
	Removing roof rail trim on both sides	Refer to REMOVING AND INSTALLING MEMBER TRIM -- TARGA, - AS OF MY 2002 .
1	Removing wind deflector -2- . See Fig 1.	Unscrew the M4 fastening nuts -3-4-2-1- . See Fig 1.
