Additional instructions for fitting the inner panels

Installing inner panels

• Press the sides of the inner panel into the sliding roof frame. Check function by sliding longitudinally.

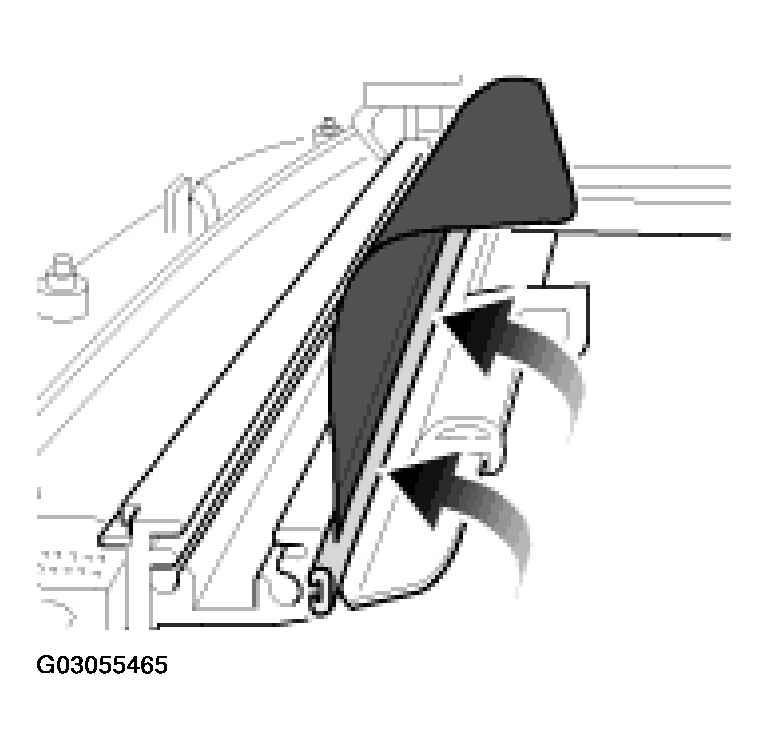

  Fig 1: Pressing Sides Of Inner Panels Into Sliding Roof Frame

  Courtesy of PORSCHE OF NORTH AMERICA, INC.
• Pull out the connector springs -B-  on the gate and push in sliding/tilting roof trim. Push inner panels under the sheetmetal panel of the sliding/tilting roof trim.

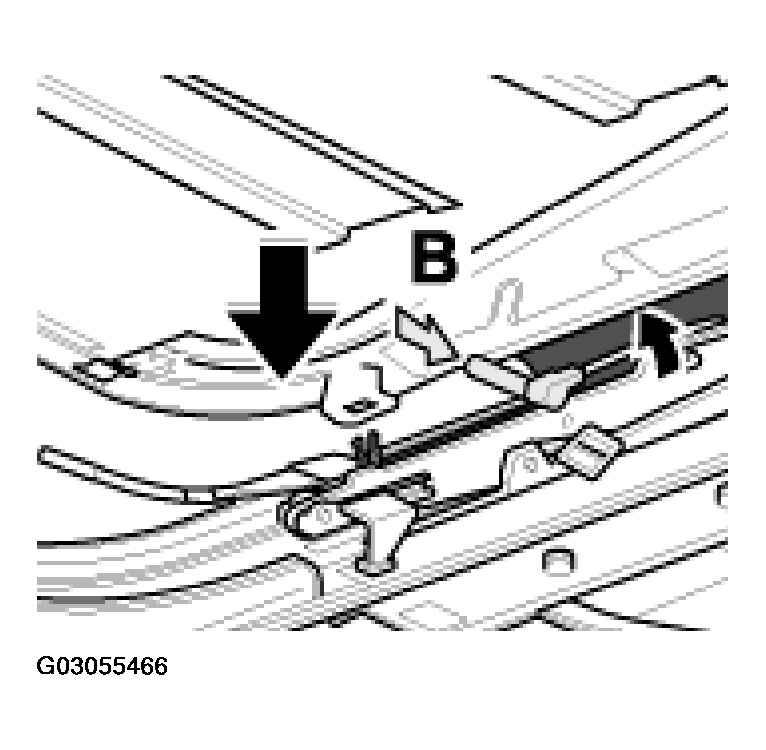

  Fig 2: Pulling Out Connector Springs

  Courtesy of PORSCHE OF NORTH AMERICA, INC.
• Position the sliding/tilting roof trim -dimension A-  approx. 80 mm in front of the roof edge cut-out.

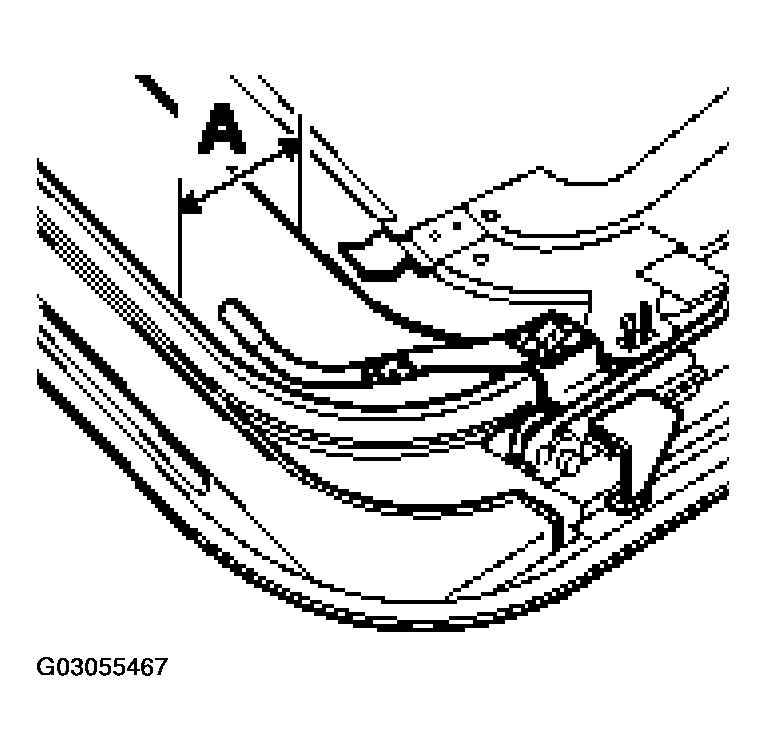

  Fig 3: Identifying Dimension For Positioning Sliding/Tilting Roof Trim

  Courtesy of PORSCHE OF NORTH AMERICA, INC.
• Engage the left and right-hand inner side panels in the sliding/tilting roof trim. Repeat the procedure for installing the sliding roof panel.

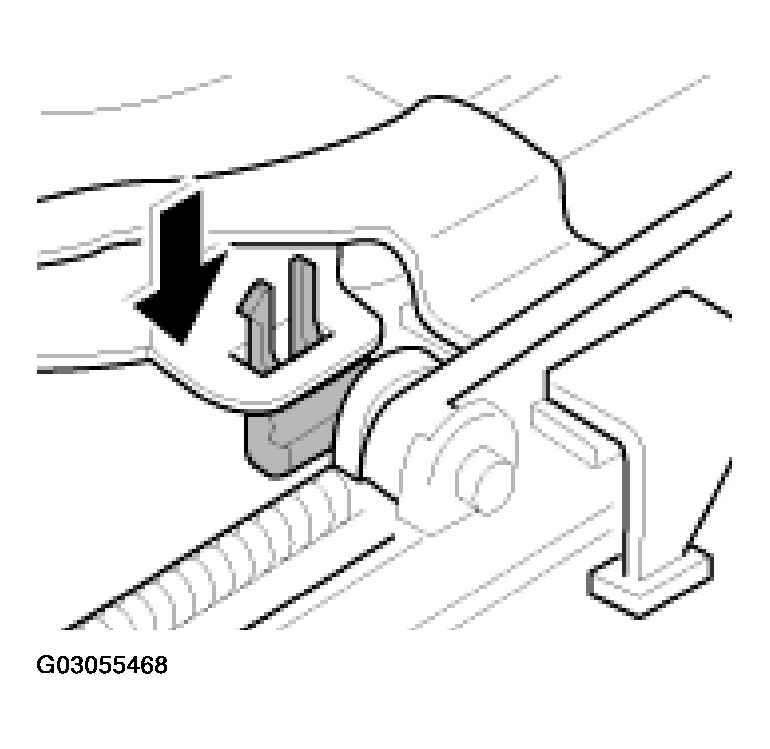

  Fig 4: Engaging Inner Side Panels In Sliding/Tilting Roof Trim

  Courtesy of PORSCHE OF NORTH AMERICA, INC.
