Removing control module

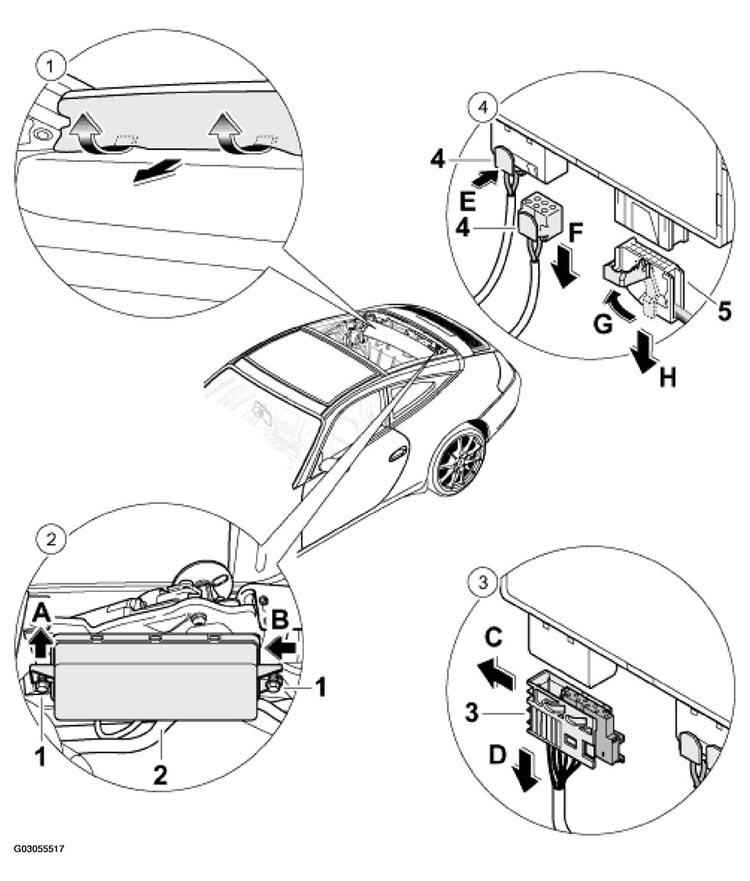

Fig 1: Removing Control Module Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Remove ignition key.

CONTROL MODULE COMPONENTS REMOVING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Removing rear wall lining	Holdrear cover at the side underneath and carefully pull out of the clips in the -direction of arrow- . See Fig 1.
2	Undoing the threaded part	Unscrew both fastening screws -1-2-A-B- . See Fig 1.
3	Disconnecting plug -3- . See Fig 1.	Push slider in the -direction of arrow C-3-D- . See Fig 1.
4	Disconnecting plugs -4-5- . See Fig 1.	Press both plugs -4-E-F-G-5-H- . See Fig 1.
