Removing motor for sliding roof

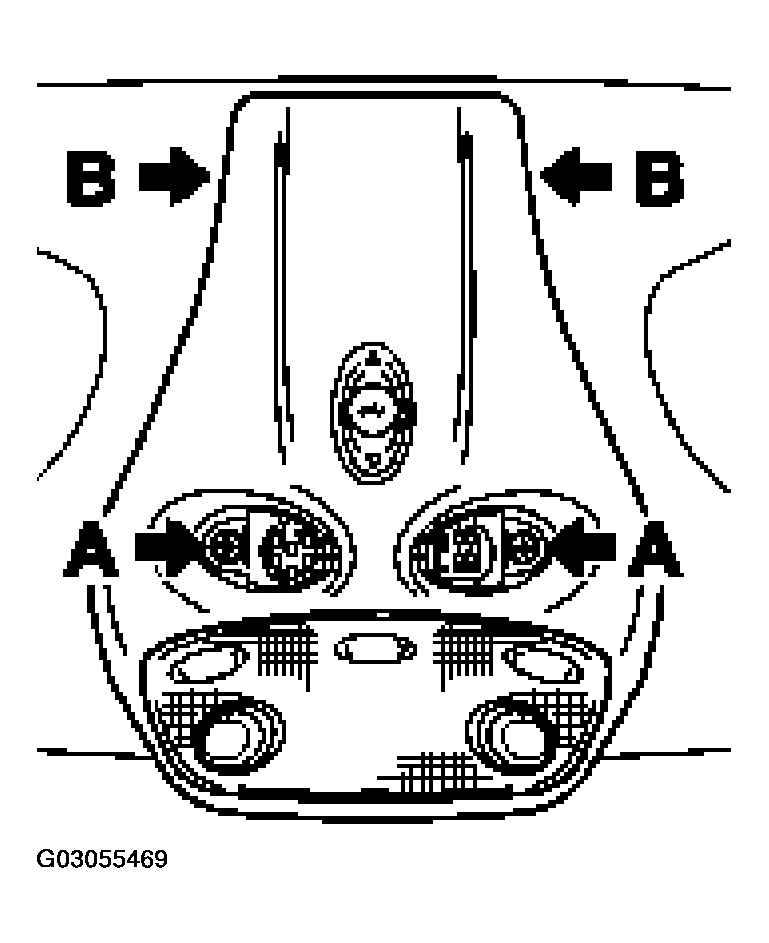

- Using a small screwdriver, carefully unclip both cover lenses at the openings provided. Undo fastening screws with a crosshead screwdriver -arrow A-
. See Fig 1.
- Unclip cover at the rear left and right -arrow B-
push forward towards the windscreen and remove. See Fig 1.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

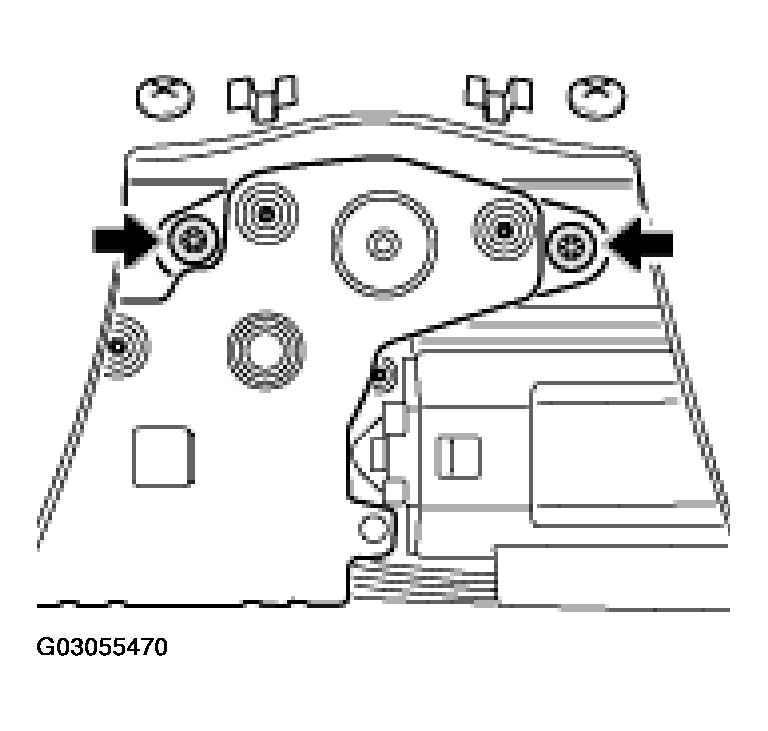

- Unscrew both Torx T25 fastening screws -arrows-
and take motor for sliding roof down and off the teeth.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Push motor for sliding roof in the roof member trim to the side and take out to the bottom. Disconnect the electrical plug connection.
